Hot Plates
-
Hot Plates

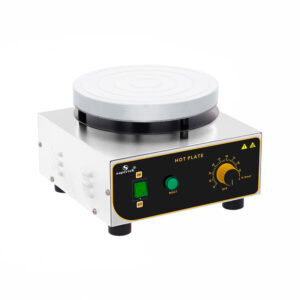

Laboratory Hot Plate, Round
This laboratory hot plate is used for general purpose heating requirements.
Features:
- For general purpose heating requirements
- Round shaped, cast iron heating plate
- Powder coated mild steel body
- Heat is controlled with in-built electronic circuit card
- Includes support rods and clamps
- With non-slip rubber feet
Technical Specifications:
- Maximum temperature of hot plate: Upto 350°C
- Overload protection
- Input voltage: 220 V AC ± 10%, 50-60 Hz
- CE certified
CH11168B -
Hot Plates

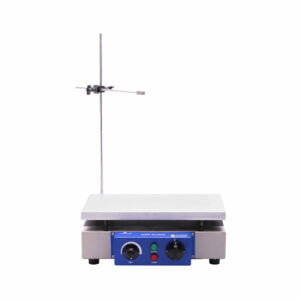

Laboratory Hot Plate, Rectangular, Analog
These rectangular hot plates with large surface area can be used for heating multiple solutions simultaneously.
Features:
- For heating multiple solutions simultaneously
- Rectangular shaped, cast iron heating plate
- Powder coated mild steel body
- Heat is controlled with in-built electronic circuit card
- Includes support rods and clamps
- With non-slip rubber feet
Technical Specifications:
- Maximum temperature of hot plate: Upto 350°C
- Overload protection
- Input voltage: 220 V AC ± 10%, 50-60 Hz
- CE certified
CH11170 -
Hot Plates

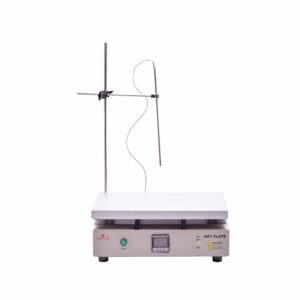

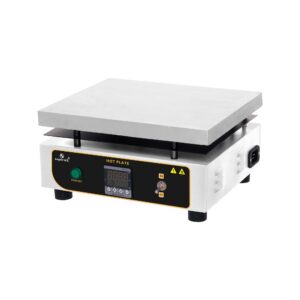

Laboratory Hot Plate, Rectangular, Digital
These rectangular hot plates, with large surface area can be used for heating multiple solutions simultaneously. Insert the external probe in the liquid solution and measure/control the temperature of liquid directly.
Features:
- For heating multiple solutions simultaneously
- Measure and control the temperature of liquid solution directly
- Rectangular shaped, cast iron heating plate
- Powder coated mild steel body
- Precise temperature control with PID controller
- LED display for showing actual and set temperature
- Temperature probe PT100
- Includes support rods and clamps
- With non-slip rubber feet
Technical Specifications:
- Temperature range: Ambient + 5°C to 350°C, Resolution 0.1°C.
- Temperature accuracy ± 0.5°C
- Overload protection
- Input voltage: 220 V AC ± 10%, 50-60 Hz
- CE certified
CH11170D -
Hot Plates

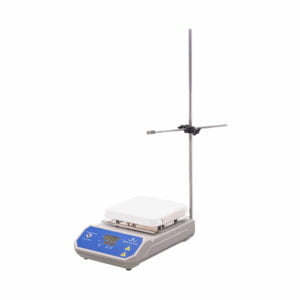

Laboratory Hot Plate, Advanced
The advanced hot plate with glass ceramic hot plate is used for heating highly reactive solutions.
Features:
- Measure and control the temperature of highly reactive liquid solutions directly with the help of probe
- Glass ceramic offers excellent chemical resistance against strong acid and bases
- Spill proof design
- Precise temperature control with PID controller
- LED display for showing actual and set temperature
- Temperature probe PT1000
- Includes support rods and clamps
- With non-slip rubber feet
Technical Specifications:
- Top Plate: Chemical resistant glass ceramic plate
- Top Plate Dimensions: 180 x 180 mm
- Max. Capacity: 10 L
- Power Rating: 1000 W
- Temperature range of top surface: Ambient + 5°C, Resolution 0.1°C
- Hot plate indication
- Selection of hot plate and probe temperature
- Independent display for Set and Actual Temperature
- Overload protection
- Input voltage: 220 V AC ± 10%, 50-60 Hz
- CE certified
CH11171D -
Hot Plates

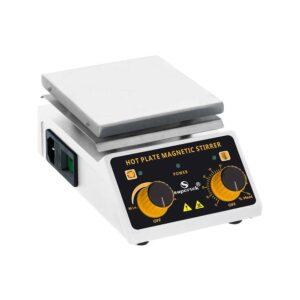

Hot Plate Magnetic Stirrer
Hot plate magnetic stirrer is used for simultaneous heating and stirring of solutions.
Features:
- Heating and stirring of liquid solutions
- Top plate is available in 2 materials: Silver anodized aluminium and Ceramic coated stainless steel
- Ceramic coating offers chemical resistance against strong acid and bases
- Stirring is done by DC motor
- Independent analog controls for heating and stirring
- Integrated circuit for precise control of heating and stirring
- Spill proof design
- High quality, fine finished textured powder coated aluminium body
- Teflon coated stirring bar
- Includes support rod and clamps
- With non-slip rubber feet
Technical Specifications:
- Top Plate Dimensions: 120 x 120 mm (500ml), 180 x 180 mm (5L)
- Temperature range of top plate: Upto 380°C
- Stirring speed: Upto 1500 RPM
- Input voltage: 220 V AC ± 10%, 50-60 Hz
- CE certified
CH12395B -
Hot Plates
Hot Plate Magnetic Stirrer, Advanced
The advanced hot plate magnetic stirrer with glass ceramic hot plate is used for heating and stirring highly reactive solutions.
Features:
- Measure and control the temperature of either hot plate or liquid solution
- LED display for showing actual temperature and RPM
- Top Plate Material: Glass ceramic
- Glass ceramic offers excellent chemical resistance against strong acid and bases
- Stirring is done using BLDC motor
- Precise temperature control & stirring with microprocessor based controller
- Selection of hot plate and probe temperature
- Hot plate indication
- Spill proof design
- High quality, fine finished textured powder coated aluminium body
- Temperature probe PT1000
- Includes support rods and clamps
- With non-slip rubber feet
CH12395H
