Demountable Transformer
This heavy duty demountable transformer can be used for the study of transformer theory and many other alternating current phenomena. This kit consists of:
- A magnetic circuit made of highly permeable U shape metal sheet, which can be closed using two clamps with tightening screws.
- Section: 40 x 40 mm with 150 mm length and 170 mm height.
- One coil of 6000 turns with maximum current of 0.2 ampere. Intermediary coil of 2000 turns output.
- One coil of 600 turns with maximum current of 2.5 ampere, which is mainly used to create the primary of transformer.
- One coil of 1200 turns, with maximum current of 1.25 ampere, fitted with intermediary 400 and 800 turns’ outputs.
- One coil of 72 turns, with maximum current of 12 ampere, fitted with intermediary 6, 30, 54 and 66 turns’ outputs.
- Power supply cable.
PH50170 -
Electricity

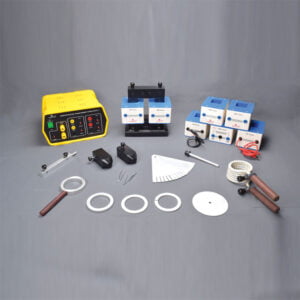

Demonstration Transformer Set, Advanced
The classic demonstration transformer apparatus is added with some additional safety features. Rather than the traditional mains (220-230V AC) coil we have designed a dedicated Demonstration Transformer Power Supply with fixed (25V AC) voltage and high current output to which 100-turn or 150-turn mains coil substitutes connect. The advantage is that no lethal mains voltage is involved, instead the voltages to these mains coil replacements is 25V AC and so safe. Additional AC and DC outputs are provided up to 4V for other experiments.
Includes:
- U and I Core Set
- 100 and 150 Turns Mains Coil Substitute for use with power supply ((PH50172AC/3)
- 300, 600, 600-0-600, 900, 1800 turns coils.
PH50172A -
Electricity

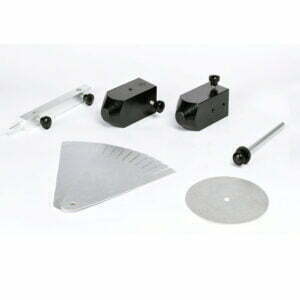

Demonstration Transformer Induction Accessory Kit
Includes:
- Copper Coil – With screw clamps to hold a nail for the nail melting demonstration.
- Nails – Steel flat-headed nails 65 x 3 mm or 2½ x 1/8 inch, some with a central groove making the nail thinner at that point.
- Solid and Split Aluminium Rings-Two solid and one split for the ring-launching demonstration.
- Solder Trough – Effectively a single turn coil in the form of a circular trough. Approximately 300 mm of solder is formed into a 50 mm dia meter circle to lie in the trough.
PH50172AC/1 -
Electricity
Demonstration Transformer Power Supply
The demonstration transformer power supply is a unique power supply designed for use specifically with the Demonstration Transformer
(PH50172A and PH50172S).- Output Voltage: Fixed output of 4 & 8V DC @ 5A, 2 & 4V AC @ 5A.
- Output Voltage for Mains Coil Substitute: 4V @ 10A.
- With Resettable short circuit protection.
PH50172AC/3 -
Electricity

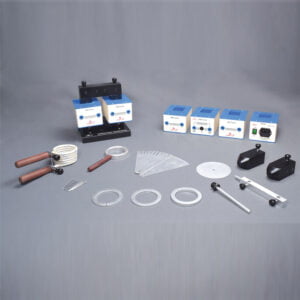

Demonstration Transformer Set, Standard
The standard demonstration transformer set allows users to use the traditional 800 turns mains coil instead of the dedicated power supply. This is a more economical option but users do not benefit from the enhanced safety features of Demonstration Transformer Set.
Includes:
- 4 U and I Core Set.
- 5 800 Turns Mains Coil.
- 6 300, 600, 600-0-600, 900, 1800 turns coils.
PH50172S -
Electricity
Transformer Stand and Core
Apparatus is designed primarily for demonstration of the basic principles of transformers. It consists of a laminated U-core with laminated I-core, both with 30 x 25 mm cross-section to form a closed core of size 105 x 140 mm. Heavy aluminium alloy stand with removable clamping rods, 2 pole pieces, each 65 x 25 x25 mm with one end cone-shaped, to accept support rod and shading ring. Poles also have a hole drilled through lengthwise to take a light beam.
PH50175 -
Electricity
Accessories Set for Demountable Transformer

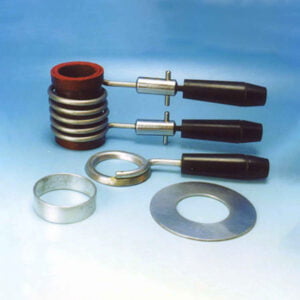

Comprising 1 welding coil of 5 turns on former with insulated handle and short-circuiting pins, 1 annular melting trough with insulated handle to show heating by induction, 1 jumping ring which is thrown clear when primary current is started and a floating ring which remains freely suspended when primary current is flowing.
PH50180 -
Electricity
DC Motor Kit
A simple kit for students to gain insight into field poles, armatures and switches, Kit includes one mounting base, field pole, armature, two wire brushes, a piece of copper wire, two shaft supports, a AA battery holder, AA battery, and 4 each of screws and nuts. With assembly instructions.
PH50202 -
-
Electricity

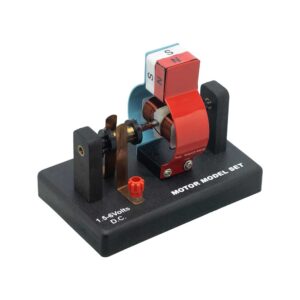

Electric Motor, Demonstration
A simple form of D.C. motor with 2 pole armature wound with insulated copper wire and a permanent magnetic field provided by a removable bar magnet, with a commutator and phosphor bronze brushes connected to 4 mm sockets, open construction, all parts visible.
PH50213 -
Electricity
St. Louis Motor Demonstration
Students can explore how a simple electric motor works by doing a series of investigations. This St. Louis motor can be adjusted so students can study the effect of voltage and position of the brushes on the commutator. This model is capable of AC & DC operation. The motor consists of a two-pole armature. The brush holder, with binding post terminals, can be rotated for experiments. The permanent magnets, supported by clamps, can be adjusted to the desired location. This apparatus requires AC/DC Power Supply and connecting leads (not included).
PH50215B -
Electricity
Motor Generator Model Set
This motor-generator set gives students an insight into the physical and technical relationships on which electric motors, generators and transformers are based. The modular system allows to set up different function models without tools:
- Various DC motors
- Series and shunt motor
- Synchronous motor
- DC generator and alternator
- Transformer
This set allows the performance of 10 student experiments about the following topics:
- Magnetic field of a coil
- Conversion of electrical energy into kinetic energy
- Commutator
- Direct current motor
- Synchronous motor
- Series and shunt-wound motors
- Electromagnetic induction
- The electrical generator
- Engine-generator
- Transformer
PH50217
