Heat
-
Heat
Magdeburg Pressure Disks
The set consists of two plastic, 10cm-diameter hemispheres. Each half has a wooden handle firmly attached to it. One of the hemispheres has a raised edge to hold a rubber seal, while the other hemisphere has a stopcock for attaching to vacuum tubing. Join the hemispheres, hook them up to a vacuum pump, and evacuate the air inside the hemispheres. You will find it hard to pull them apart. Open the stopcock to let air in and the hemispheres will separate easily.
PH12184 -
Heat
Linear Expansion Apparatus, Micrometer Screw Form
A 500 mm long metal rod is supported in a plated brass tube with three tubules for steam inlet, outlet and thermometer. The tube is mounted on a stand with an adjusting screw at one end and a micrometer screw reading to 0.01 mm on the other, with terminals for connecting a bell or galvanometer to indicate contact. With copper, brass and iron test rods but without thermometer.
PH20044 -
Heat

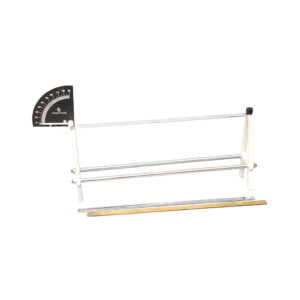

Expansion Apparatus
Two cast metal uprights, height 18 cm, fitted with two nickel-plated rods supporting expansion bar of length 38 cm. Expansion bar is fixed to one upright and moves a pointer on the other, when heated. With scale reading 0 to 90°, supplied with one each, aluminium, brass and iron expansion bars.
PH20045 -
Heat
Pyrometer
Fitted on a wooden base cast metal uprights and rod mountings. A 20-0-20 scale is provided to notice the expansion in rods. The counterweighted needle is used for easy reading. A knurling screw is provided for zero adjustment. Supplied with three metal rods one of each Aluminium, Brass and Steel.
PH20045N -
Heat
Linear Expansion
A high-quality apparatus to determine precisely co-efficient of expansion of various metals. An aluminium channel carries a 60 cm long metal rod enclosed in a heating jacket having three nipples for water intake, water outlet and thermometer insertion. Dial indicator is a precision instrument sensitive to 0.01 mm/division and is securely mounted. As the apparatus works with hot water, there is no danger from any steam escaping and causing burns on the skin. Complete with four expansion rods of steel, brass, copper and aluminium.
PH20047 -
-
Heat
Absolute Expansion of Mercury Apparatus, Dulong & Petit
To determine the co-efficient of absolute expansion of mercury. Glass tubes with vertical limbs contained within glass jackets approx. 460 x 25 mm height x diameter, are closed by bungs and fitted with inlet and outlet tubes. Upper ends of these vertical limbs are angled on emergence from the jackets to produce two short, adjacent limbs placed against a silvered glass scale 0 to 12 cm x 1 mm. Mounted on stand 610 x 230 mm, height x width. Overall height 750 mm approx., supplied without mercury.
PH20084 -
Heat
Charle’s Law Apparatus
To determine the coefficient of expansion of a gas at constant pressure. A glass U-tube with a bulb and stopcock at one end, the other limb being open. An outlet tube from the bottom of the U tube passes through a rubber bung and has a stopcock at the end. The stem below the bulb is graduated 3 x 0.1 ml. An inlet tube with a mohr clip also passes through the bung. A glass water jacket encloses the U tube. All glass parts made of borosilicate glass require only 20 ml mercury, which is not included.
PH20089
