Heat
-
Heat

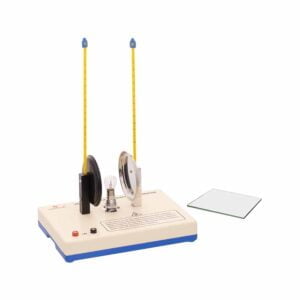

Heat Absorption and Radiation Comparator
To demonstrate the phenomenon of heat absorption and radiation between different surfaces. One 12V bulb is used as heat source and two parabolic metal discs used as different bodies, one slot is provided behind the discs to hold the thermometer. Two sockets are provided for power input. with two thermometers & plain glass.
PH20346 -
Heat

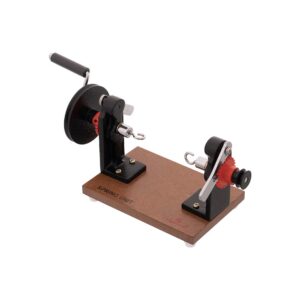

Spring Unit
For showing conversion of potential energy stored in twisted rubber to kinetic/electrical energy. Elastic bands are looped and stretched between pulley and support. A crank handle and pulley combined with ratchet stop allows the rubber to be wound up and released to drive a dynamo, supplied without dynamo.
PH20405 -
Heat

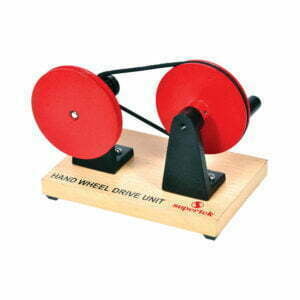

Hand Wheel Drive Unit
Converts muscular energy to other forms of energy. 75 mm diameter hand-cranked pulley with rubber belt to drive a small pulley of 20 mm diameter to which a drive output pulley is directly attached. Pulley shafts are mounted in bearings on aluminium casting, on standard base.
PH20422 -
Heat

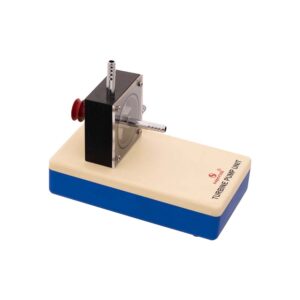

Turbine/Pump Unit
This simple unit can help the student understand the operating principle of pump and turbine. The unit consists of a rotor attached to a pulley via a shaft. It also includes 3 metal nozzles and a stopcock. When driven by a motor, the unit works as a pump, raising the water to higher potential energy. Whereas when the rotor is made to rotate by flowing water, the unit acts as a turbine.
PH20425 -
Heat

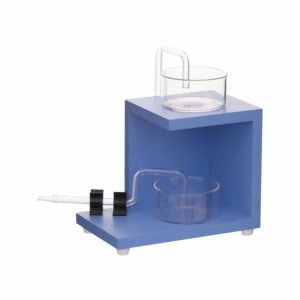

Head of Water Unit
The unit consists of a wooden base with upper and a lower platform. The upper platform has a hole to allow use as a simple circulation system with a single reservoir. Includes two glass basins and shaped glass tubes. This unit is used as an accessory with Pump/Turbine Unit (PH20425).
PH20432 -
Heat

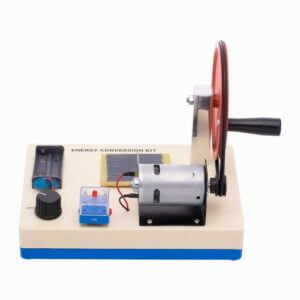

Energy Conversion Kit
Energy conversion kit is used to demonstrate the energy conversion between different (solar, mechanical, electrical etc.) forms of energy. It is very easy to work with. It is mounted on a solid plastic board provided with an ON/OFF switch, a solar cell, battery holder and crank hand. 4 mm sockets are provided for the output.
Additional Accessories Included:
- 2 AA batteries
- An electromagnet
- A Buzzer
- A Motor with fan
- LED
- Resistor
PH20448 -
Heat

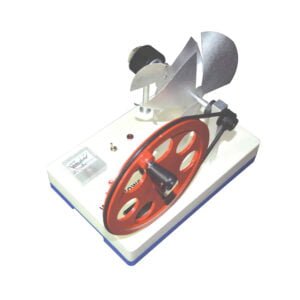

Wind Power Demonstrator
This wind power generator can be used to demonstrate the generation of electricity by a wind-powered turbine. Wind produced by the hand-cranked fan subsequently turns a second fan connected to a generator. When the fan rotates, it produces electricity and lights up a small LED and a voltmeter. Instructions included.
PH20450 -
Heat

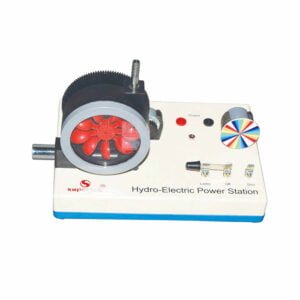

Hydroelectric Power Station
Ideal for classroom demonstration, this hydroelectric power station model allows students to directly observe the process of conversion of water flow to electrical energy that occurs in hydroelectric power plants. The water turbine is mounted on a plastic base together with a dynamo, newton disc, lamp, LED, and a two-way selecting switch. The switch selects delivering power to either a lamp or a Newton’s Color Disc. The LED can be removed if you instead want to draw current from the 4 mm output terminals. Includes instructions.
PH20452
