Waves & Sound
-
Waves & Sound
Bell Jar and Vacuum Pump Set
Simple, innovative kit allows you to perform a number of experiments on vacuum and air pressure. The kit clearly demonstrates the method by which a pump works. Also illustrates that air has mass and helps find its mass and density. Explain the effect of surrounding air pressure on a sealed balloon. The balloon will expand when the surrounding air is removed. And also demonstrate that liquid boils at reduced temperature when the surrounding air pressure is reduced. with 2 balloons With instructions.
PH36013 -
Waves & Sound
Bell in Bell Jar
Without air or matter, sound waves cannot travel and therefore cannot be heard. This bell jar effectively demonstrates this concept using a battery-operated buzzer housed inside the jar. When the buzzer is placed beneath the jar and a vacuum is created inside the jar, students will observe a total absence of sound. Once the air is returned to the jar, the sound of the buzzer can be heard once more. The activity requires a vacuum pump & plate, not included.
PH36015A -
-
Waves & Sound

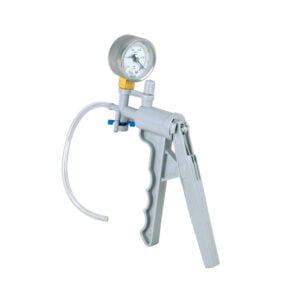

Hand Vacuum Pump
The vacuum pump is made of durable plastic. It can easily provide a vacuum of 500mmHg by pumping its handle, the pumping rate of which is about 15ml per pumping. The pump itself is sealed and self-lubricated. By changing its working mode, the pump can be used to establish air pressure as high as approx. 2 atm. It is a must for middle and primary school laboratories.
PH36018B -
-
-
Waves & Sound
Ripple Tank
Transparent acrylic plastic ripple tank, supported in a sturdy plastic frame which has recesses to hold four legs with leveling feet. The tank edges are shaped to minimise undesired reflections. Tank has a drain hole closed by a rubber stopper. With two light alloy uprights to carry a horizontal rippler support rod which is adjustable for height. The ripple assembly, elastically suspended from the support rod, consists of a 4 – 6 V DC motor mounted on a wooden beam. The motor has an eccentric weight which causes the beam to oscillate. Two-point sources are provided by two plastic spheres, each mounted on a right-angle rod. A metal rod is fixed centrally into a socket in one short side of the frame to afford support to the illuminant. Overall size of the tank 580 x 500 x 80 mm, window area 370 x 280 mm, height of tank above bench level (with legs attached) approx. 375 mm. Complete with following accessories:-
- Two straight obstacles of aluminium alloy length 130 mm.
- One straight obstacle length 40 mm.
- One curved reflector radius 200 mm.
- One trapezoidal plastic plate for refraction.
- One wood hand wave roller.
- One water dropper.
- One pkt. rubber bands.
- One foam plastic sponge.
- One illuminant with a 12 V, 24 W lamp mounted in a lamp house and provided with a long supporting rod which can be attached to a retort stand. With instructions. Without power supply
PH36044 -
Waves & Sound
Digital Stroboscope
Stroboscopic flashes are triggered by either the internal oscillator or by external pulses which may be connected to the socket mounted on the rear panel of the instrument. Example of the many applications of this unit are to be found in motion analyism multi exposures photography, examination of moving parts and measurement of rotational speed.
Specifications:-
Input Volts: 220V AC, 50 Hz.
Max. Flash Rate: 9999 Flashes per minute.
Resolution: 1.
Display: 7 Segment LED (4 Digit).PH36067P
