Scope of Supply
- Main unit
- Instruction Manual
- Power cord
- Support rod
- Boss head
- Probe clamp
- PT100 temperature probe
- PTFE-coated magnetic stir bar
Mixing

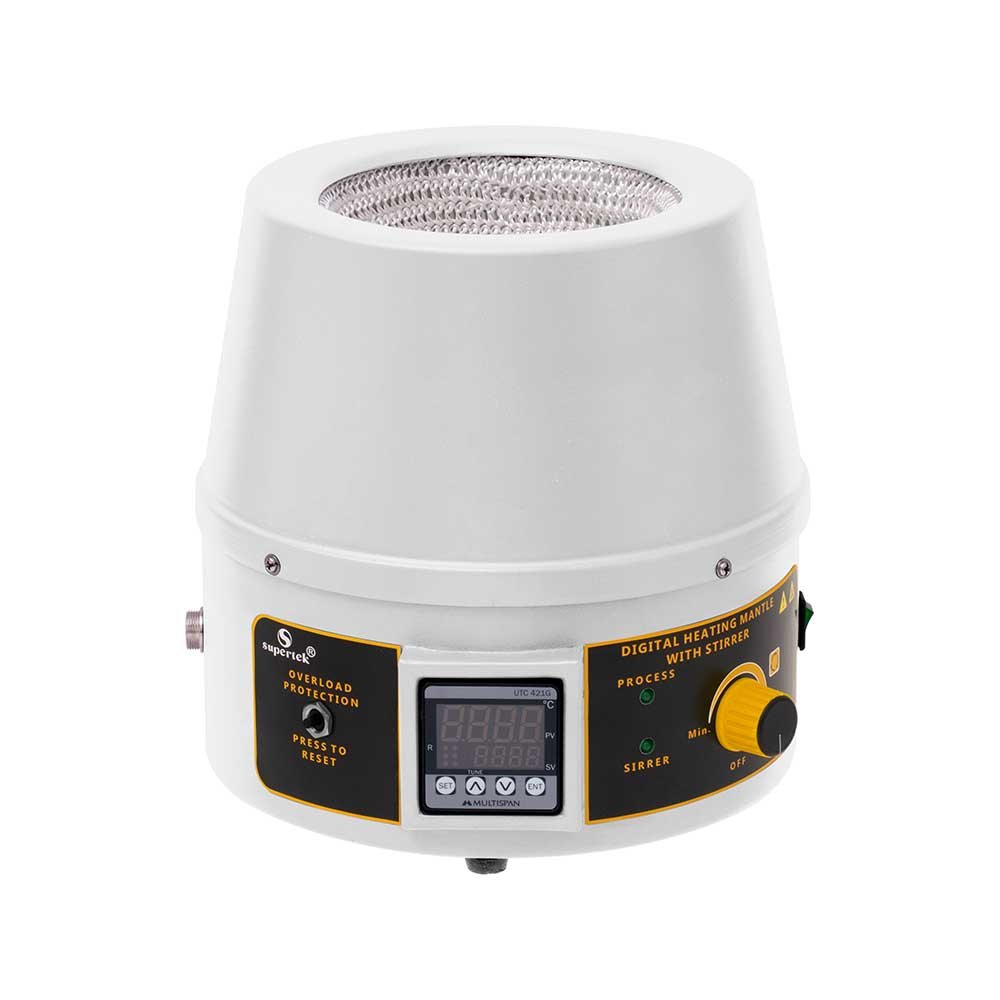

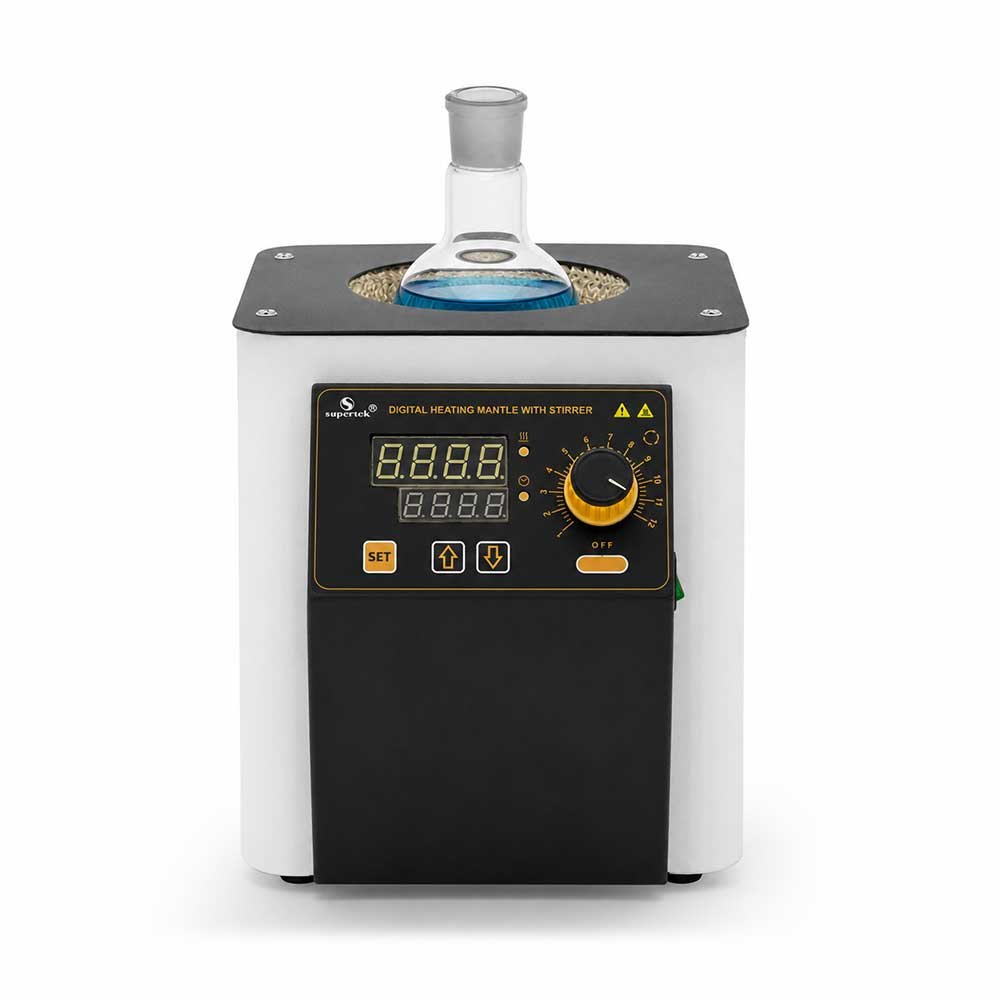

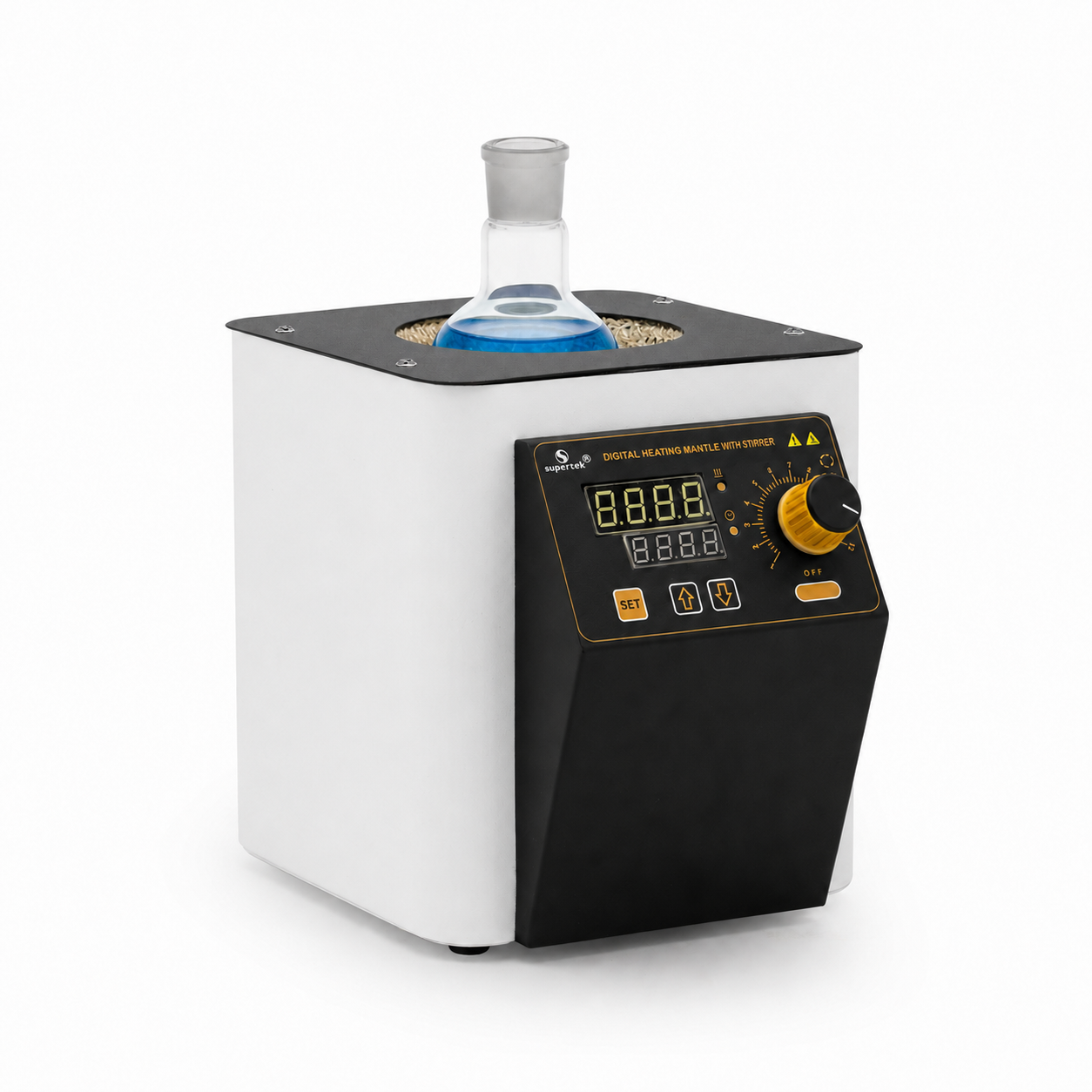

Heating Mantle with Stirrer, Digital
Availability:
In Stock
supertek’s digital heating mantle with magnetic stirrer offers precise PID temperature control together with adjustable magnetic stirring in a single unit. Insert the PT100 probe to measure and control the liquid temperature directly. Supplied with a robust MS (mild steel) rectangular body.
Features:
- With non-slip rubber feet
- Temperature probe PT100
- For use with round bottom flasks
- Includes support rods and boss head
- Precise temperature control with PID controller
- LED display for showing actual and set temperature
- Built-in magnetic stirrer with adjustable stirring speed
- Independent temperature and stirring speed control
- Outer body is made from powder-coated MS (mild steel), rectangular construction
- Glass fibre yarn knitted heating element provides uniform heating to the flask
Technical Specifications:
- CE Marked/Compliant
- Overload protection
- Input voltage: 220 V AC ± 10%, 50/60 Hz
- Temperature accuracy ± 0.5°C, Resolution 0.1°C
- Temperature range of PT100: Ambient + 5°C to 250°C
- Stirring speed: Upto 1200 RPM
- Temperature range of heating surface: Ambient + 5°C to 400°C
- Timer: Up to 9999 mins
- IP Rating: IP20
Note: Heating element cording may be slightly brown in colour due to QC testing.H111
HMS-D
| Cat. No. | Flask Capacity, ml | Rating (W) | Pack Size | Quantity | |
|---|---|---|---|---|---|
| HMSRT-D-10L | 10000 | 1200 | 1 | ||
| HMSRT-D-50 | 50 | 60 | 1 | ||
| HMSRT-D-100 | 100 | 60 | 1 | ||
| HMSRT-D-250 | 250 | 150 | 1 | ||
| HMSRT-D-500 | 500 | 200 | 1 | ||
| HMSRT-D-1L | 1000 | 300 | 1 | ||
| HMSRT-D-2L | 2000 | 450 | 1 | ||
| HMSRT-D-3L | 3000 | 450 | 1 | ||
| HMSRT-D-5L | 5000 | 600 | 1 |
