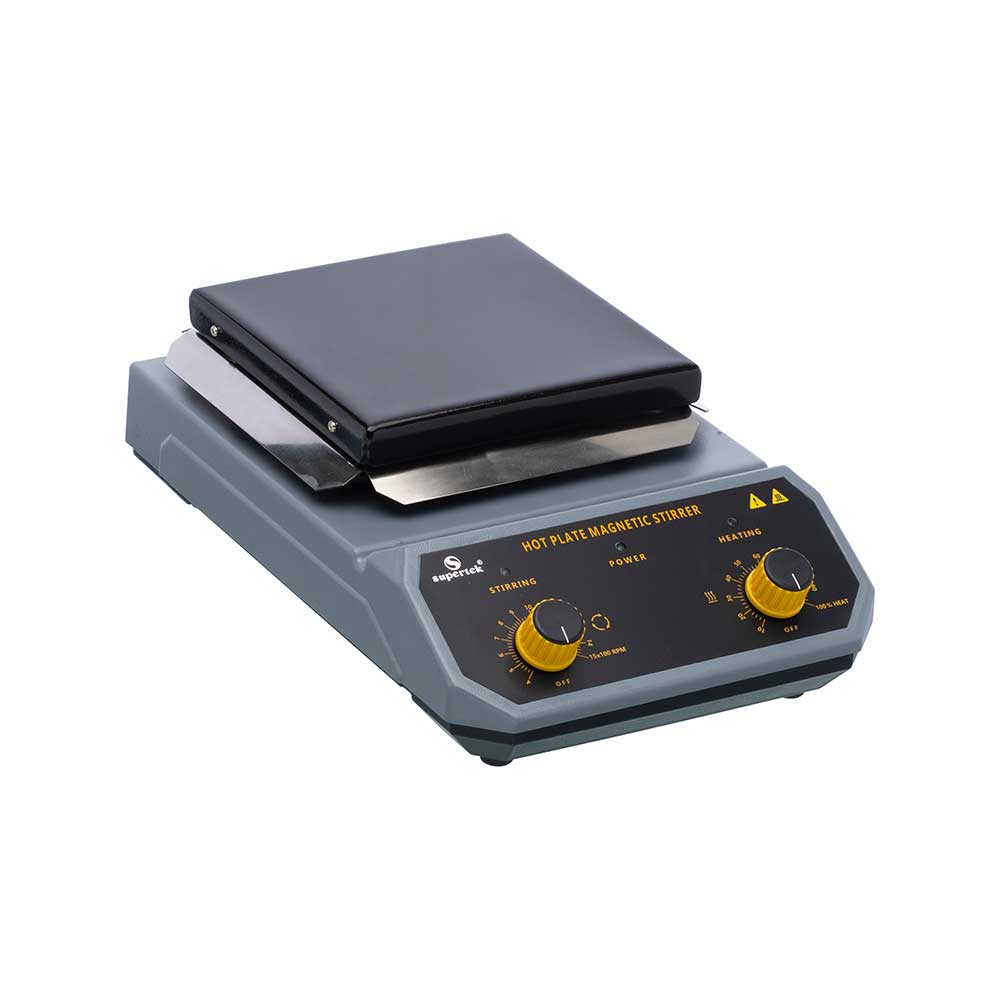

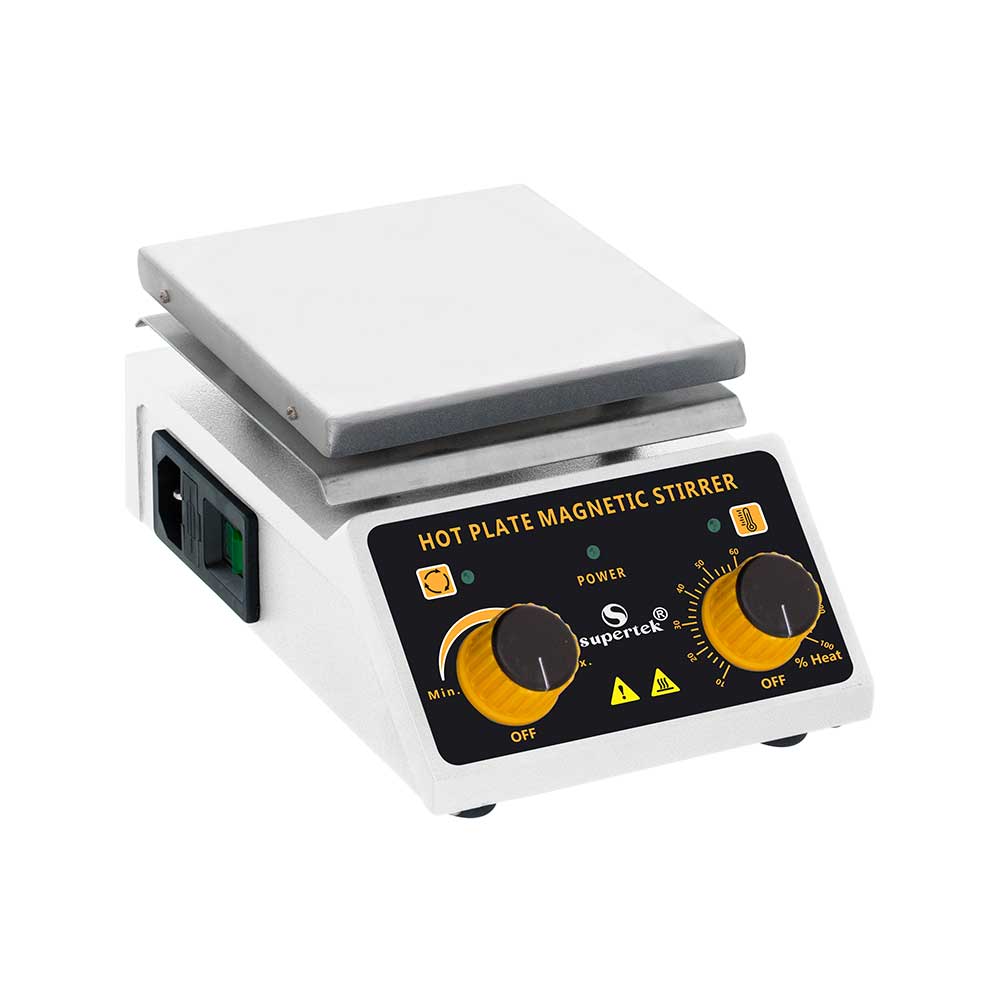

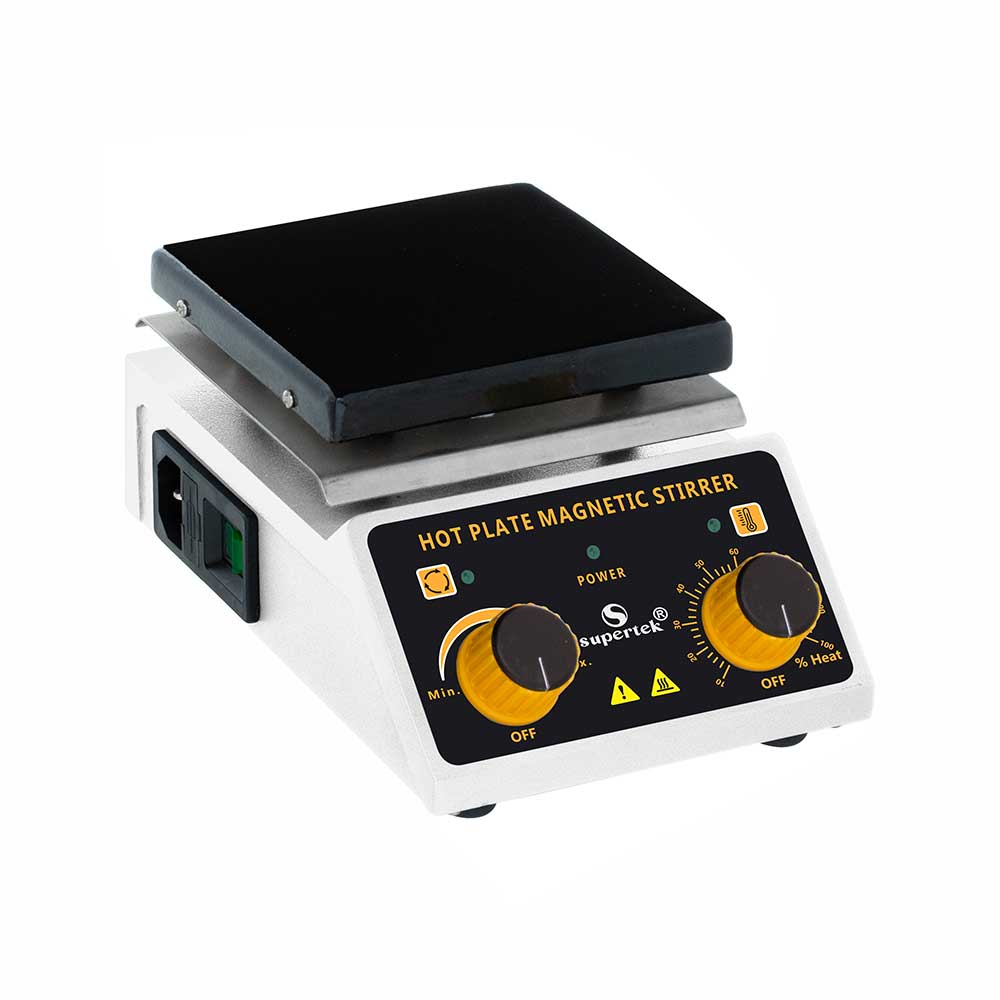

Hot Plate Magnetic Stirrer
Availability:
In Stock
Hot plate magnetic stirrer is used for simultaneous heating and stirring of solutions.
Features:
- Heating and stirring of liquid solutions
- Top plate is available in 2 materials: Silver anodized aluminium and Ceramic coated stainless steel
- Ceramic coating offers chemical resistance against strong acid and bases
- Stirring is done by DC motor
- Independent analog controls for heating and stirring
- Integrated circuit for precise control of heating and stirring
- Spill proof design
- High quality, fine finished textured powder coated aluminium body
- Teflon coated stirring bar
- Includes support rod and clamps
- With non-slip rubber feet
Technical Specifications:
- Top Plate Dimensions: 120 x 120 mm (500ml), 180 x 180 mm (5L)
- Temperature range of top plate: Upto 380°C
- Stirring speed: Upto 1500 RPM
- Input voltage: 220 V AC ± 10%, 50-60 Hz
- CE certified
CH12395B
| Cat. No. | Max Capacity | Top Plate | Max. Temp. | Pack Size | Quantity | |
|---|---|---|---|---|---|---|
| CH12395B/2A | 500ml | Aluminium | 350 °C | 1 | ||
| CH12395B/2C | 500ml | Ceramic Coated | 380 °C | 1 | ||
| CH12395H/2A | 5L | Aluminium | 350 °C | 1 | ||
| CH12395H/2C | 5L | Ceramic Coated | 380 °C | 1 |
