Scope of Supply
- Main unit
- Instruction manual
- Power cord
- Mesh trays as per model
Heating & Tempering

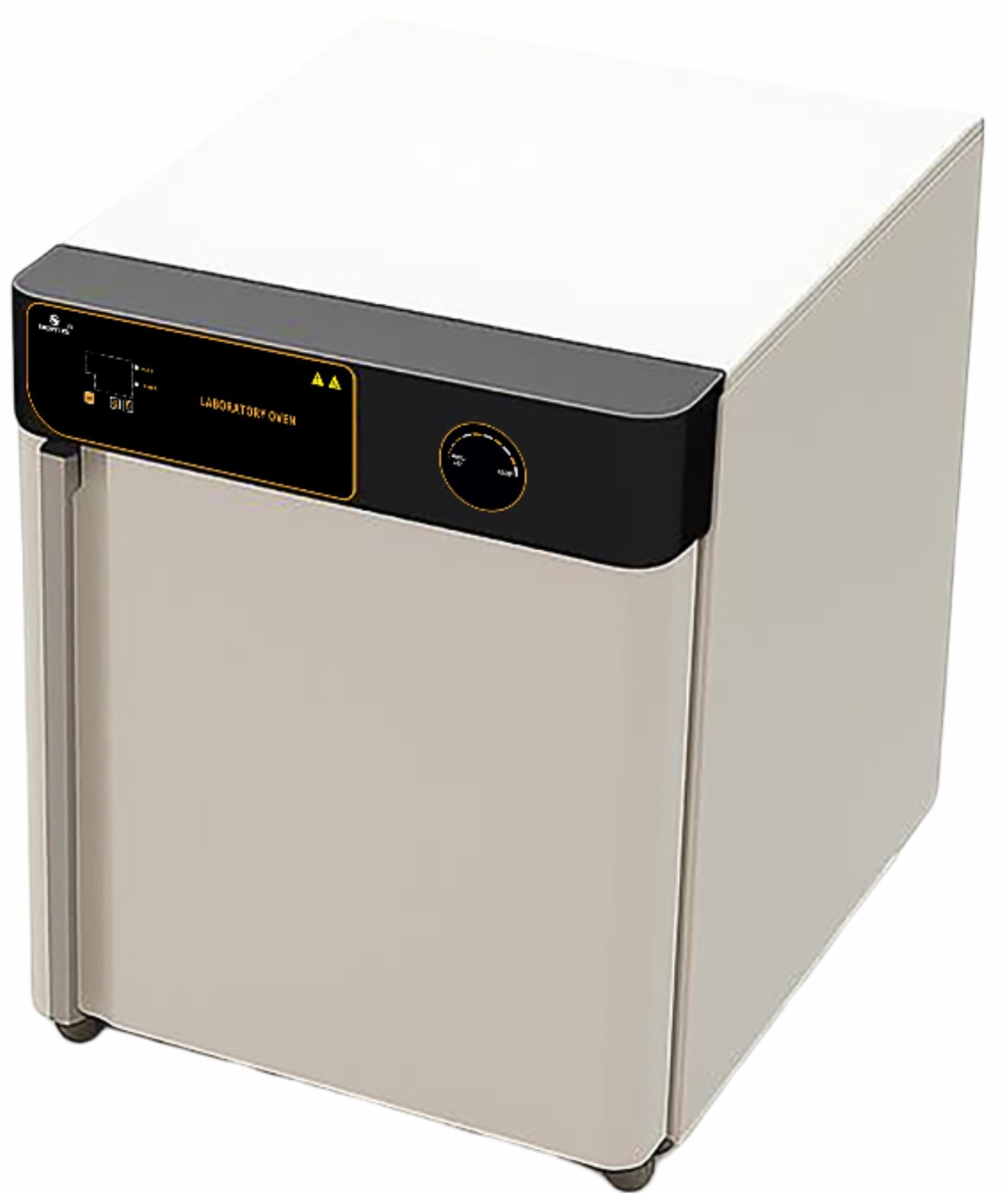

Laboratory Oven, Digital
Availability:
In Stock
Digital hot air oven designed for drying, sterilization, and general laboratory heating applications. The oven provides uniform temperature distribution through forced air circulation, ensuring
reliable and repeatable results. Ideal for material testing, glassware drying, and heat treatment processes in research and industrial laboratories.
Features:
- Temperature range: Ambient +5°C to +250°C
- Excellent temperature stability
- Internal air circulation
- Deep-drawn ribs for secure SS shelf placement
- Ergonomic handle for ease of use
- Optimized insulation for efficient temperature control and energy savings
- Supplied with mesh trays as standard
Technical Specifications:
- Temperature Range: 50°C to 250°C, resolution 1°C
- Timer: Up to 9999 minutes
- Temperature Accuracy: ±1°C
- Input voltage: 220 V AC ±10%, 50/60 Hz
- CE Marked
Note: stainless-steel ovens are available on request
OV-D
| Cat. No. | Capacity, L | Power Rating, W | Chamber Size, mm W x D x H | No. Of Shelves | Pack Size | Quantity | |
|---|---|---|---|---|---|---|---|
| OV-D-27 | 27 | 1200 | 300 x 300 x 300 | 2 | 1 | ||
| OV-D-45 | 45 | 1200 | 355 x 355 x 355 | 2 | 1 | ||
| OV-D-60 | 60 | 1200 | 450 x 300 x 400 | 2 | 1 | ||
| OV-D-90 | 90 | 1800 | 450 x 450 x 450 | 3 | 1 | ||
| OV-D-120 | 120 | 1800 | 450 x 450 x 600 | 3 | 1 | ||
| OV-D-160 | 160 | 1800 | 600 x 450 x 600 | 3 | 1 | ||
| OV-D-215 | 215 | 2400 | 600 x 600 x 600 | 3 | 1 | ||
| OV-D-240 | 240 | 2400 | 625 x 625 x 625 | 3 | 1 | ||
| OV-D-325 | 325 | 3000 | 600 x 600 x 900 | 3 | 1 |
| Capacity, L | 27, 45, 60, 90, 120, 160, 215, 240, 325 |
|---|---|
| Power Rating, W | 1200, 1800, 2400, 3000 |
| Chamber Size, mm W x D x H | 300 x 300 x 300, 355 x 355 x 355, 450 x 300 x 400, 450 x 450 x 450, 450 x 450 x 600, 600 x 450 x 600, 600 x 600 x 600, 625 x 625 x 625, 600 x 600 x 900 |
| No. Of Shelves | 2, 3 |
| Pack Size | 1 |
