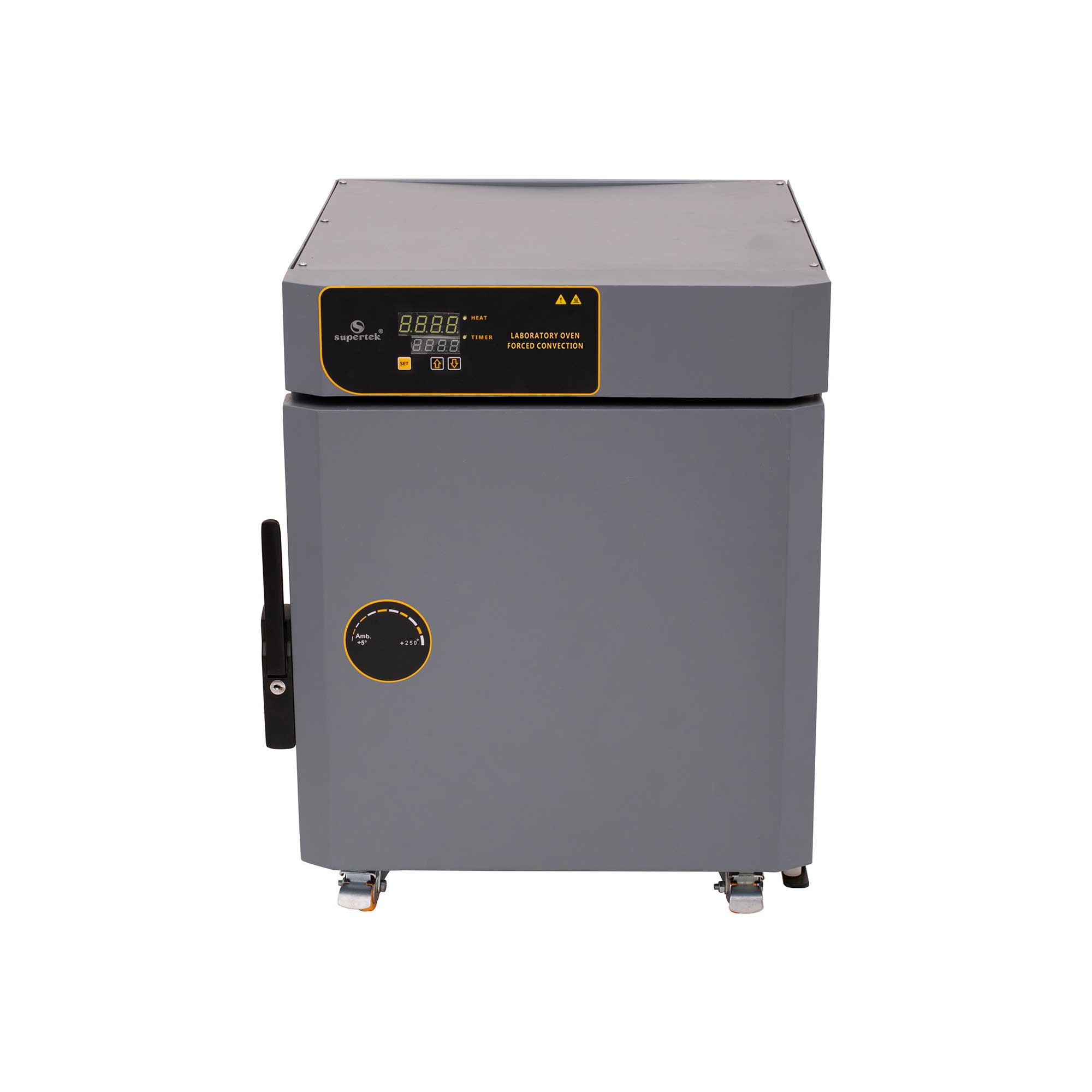

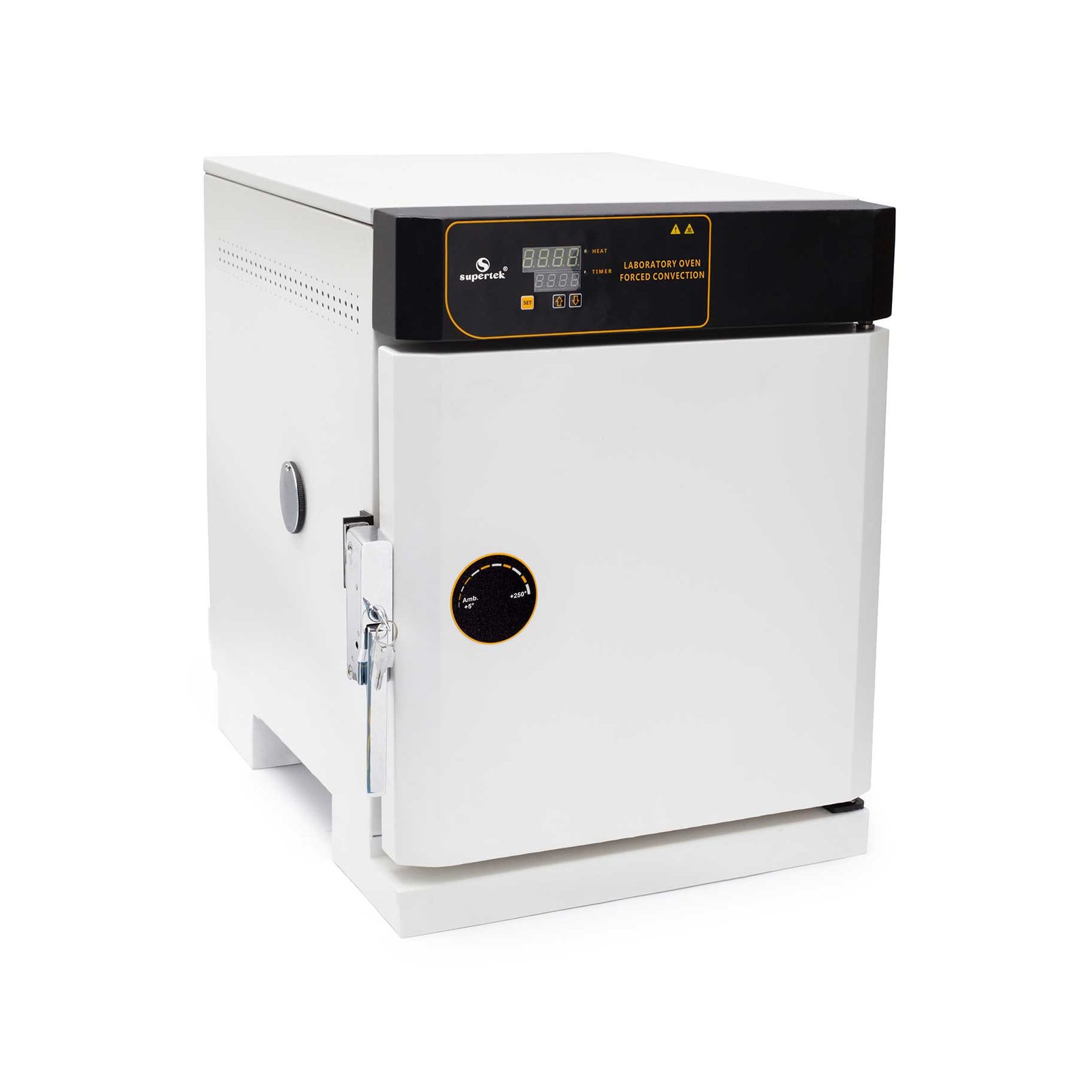

Laboratory Oven

A digital laboratory oven is used for high-volume thermal convection applications. The inner chamber is performed for natural conventional airflow which assures constant temperature in the system. Temperature up to 250°C. Standard double wall fabrication. The inner chamber is made out of a highly polished stainless-steel sheet and the outer is made out of mild steel finished in white stoving enamel. The gap between the two walls is filled with high-grade glass wool.

Features:

• Process Timer
• Fan failure alert
• Stainless steel interior
• Powder-coated exterior
• Caster wheels for easy movement (Optional)
• PID controller for precise temperature control
• Adjustable perforated shelves made of stainless steel
• Superior insulation for lower energy consumption and better performance
• Forced air convection produces faster temperature response rates, improves uniformity and reduces fluctuation

Technical Specifications:

• CE Marked
• Overload protection
• Timer: Upto 9999 minutes
• Maximum shelf load: 15 Kg
• Temperature accuracy ± 1°C
• Input voltage: 220 V AC ± 10%, 50/60 Hz
• Temperature range: ambient +5° to 250°C, Resolution 1°CCH11810F

Note: Stainless Steel Ovens are available on request.
