| Technical Specifications | ||
|---|---|---|
| Specification | SuperFuge 3R | SuperFuge 3V |
| Catalogue No. | SF-3R | SF-3V |
| Max. Capacity (Swing-out) | 15 mL (10×1.5 mL) | 15 mL (10×1.5 mL) |
| Max. Capacity (Fixed-angle) | 200 mL (4×50 mL) | 200 mL (4×50 mL) |
| Max. Speed | 20,000 RPM | 17,500 RPM |
| Max. RCF | 32,198 × g | 24,652 × g |
| Acceleration/Braking Time Swing-out Rotor | 25 s / 25 s | 25 s / 25 s |
| Acceleration/Braking Time Fixed Angle Rotor | 20 s / 20 s | 20 s / 20 s |
| Noise Level | <58 dB A | <58 dB A |
| Temperature Range | -10°C to +40°C | Ambient to +40°C |
| Refrigerant | R134a (CFC Free) | Not Applicable |
| Dimensions (H×W×D) | 425 × 692 × 540 mm | 425 × 415 × 540 mm |
| Height with Lid Open | 839 mm | 839 mm |
| Weight (without rotor) | 70 kg | 40 kg |
| Power Consumption | 750 W | 500 W |
| Input Power | 220–230 V AC, 50–60 Hz | 220–230 V AC, 50–60 Hz |
Separation
SuperFuge 3R/3V
Availability:
In Stock

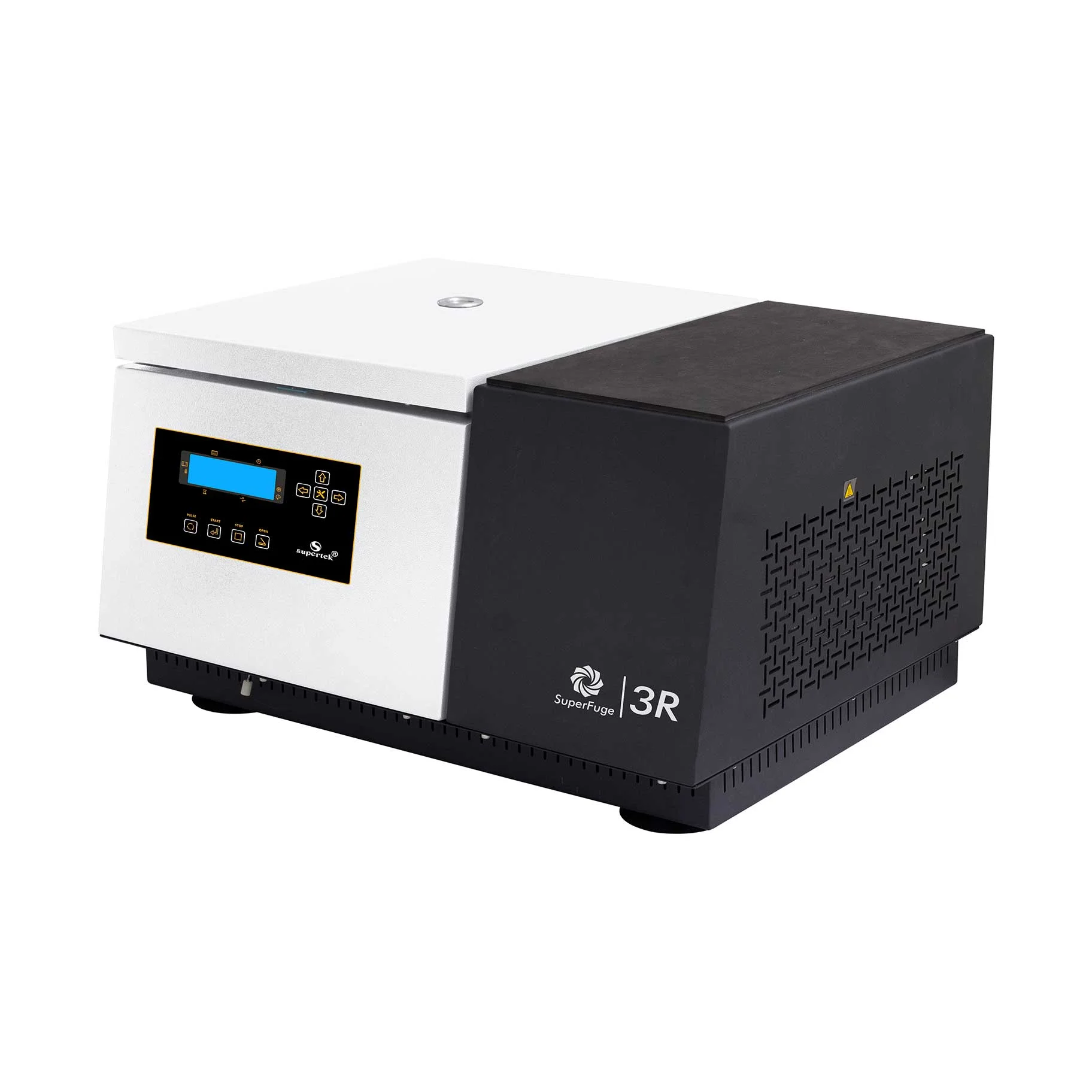

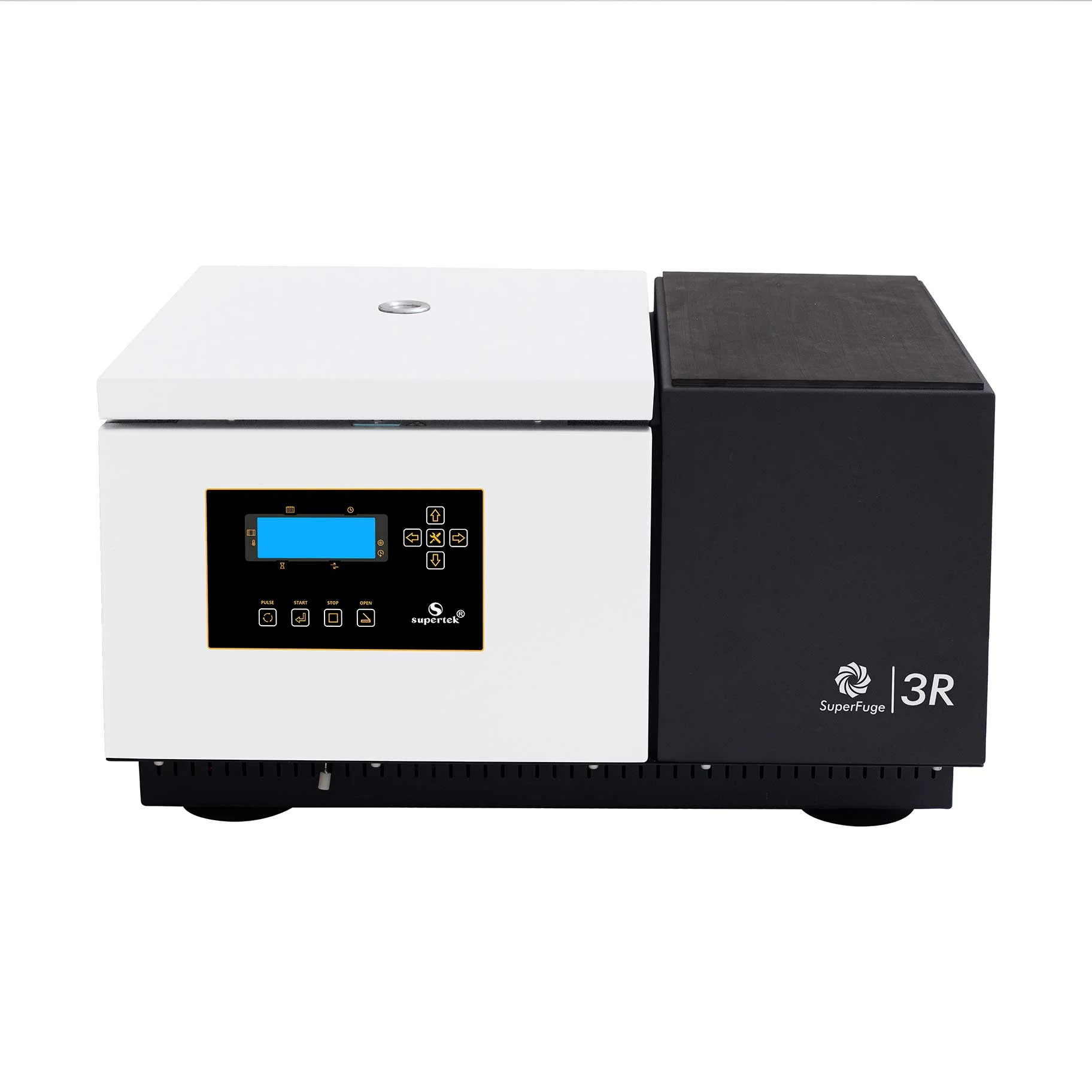

The SuperFuge 3R/3V are multi-purpose centrifuge machines that combine the versatility of micro and benchtop centrifugation into a single, compact design. These machines support broad range of rotors for a variety of tube sizes, delivering precise and powerful separation for clinical, research, and industrial applications.
Applications:
- Clinical & Research Applications: Cell harvesting, PBMC isolation, Molecular biology workflows, PCR preparation, Protein purification.
- Industrial & Applied Sciences: Ultrafiltration, Food technology.
Product Features:
- Heavy duty and high-capacity centrifuge machine: Capacities ranging up to 4 × 50 mL.
- High RPM & RCF Output: Making it ideal for fine particle separation, nucleic acid preparation, and more.
- Features Brushless Induction Motor.
- Supports multiple rotors (Not included). Accommodates both swing-out and fixed-angle rotors.
- Automatic rotor recognition ensures accurate RCF calculation and safe operation.
- Available with refrigeration option.
- Refrigerated model uses eco-friendly, CFC-free R-134a refrigerant.
- Salient Features: Emergency Lid Opening, Rotor Cycle Counting, Solid Counter-Balanced Hinges, Imbalance Detection, Motor Overload Protection, Stainless Steel Chamber with Guard Ring, Error Detection System.
- Intuitive user interface with bright digital display.
- Features programmable timer up to 99 hours, 59 minutes, and 59 seconds.
- Store up to 99 user-defined programs for fast setup and repeatable applications.
- Multiple acceleration and braking profiles options.
- Eco Mode for saving energy during standby.
- Low operating noise levels.
- CE Marked.
Rotor Accessories:
*A – Angle Rotor | AL – Angle Rotor with Lid | SW – Swing Out Rotor | Rotors available in pack of 1
SF-3
| Cat. No. | Category | Description | Angle | RPM (Ref) | RCF (Ref) | RPM (Non-Ref) | RCF (Non-Ref) | Quantity | |
|---|---|---|---|---|---|---|---|---|---|
| SF-3V | Centrifuge | SuperFuge 3V | -- | -- | -- | -- | -- | ||
| SF-3R | Centrifuge | SuperFuge 3R | -- | -- | -- | -- | -- | ||
| A26-4x50 | Rotor | 4 × 50 mL | 26° | 10000 | 10,062 × g | 10000 | 10,062 × g | ||
| AL26-6x30 | Rotor | 6 × 30 mL | 26° | 11000 | 11,093 × g | 10000 | 9,168 × g | ||
| A30-20x5 | Rotor | 20 × 5 mL | 30° | 16000 | 20,035 × g | 14000 | 15,339 × g | ||
| A30-4x30 | Rotor | 4 × 30 mL | 30° | 16000 | 21,179 × g | 14000 | 16,215 × g | ||
| A36-10x8 | Rotor | 10 × 8 mL | 36° | 16000 | 22,324 × g | 14000 | 17,092 × g | ||
| A45-24x1.5 | Rotor | 24 × 1.5 mL | 45° | 20000 | 32,198 × g | 17500 | 24,652 × g | ||
| AL45-24x1.5 | Rotor | 24 × 1.5 mL | 45° | 17500 | 29,103 × g | 15000 | 21,382 × g | ||
| AL45-32x0.2 | Rotor | 32 × 0.2 ml PCR | 45° | 15000 | 15,345 × g | 15000 | 15,345 × g | ||
| SW90-10x1.5 | Rotor | 10 × 1.5 mL | 90° | 10000 | 9,391 × g | 8000 | 6,010 × g |
