Distillation Apparatus
-
Distillation Apparatus
Soxhlet Extraction Heating Unit
Unit comprises a compact box section of mild steel housing, Heating mantles consist of coiled element supported by glass yarn net. These flexible units ensure close contact with flask surface and even distribution of heat. The housing has two vertical and two horizontal rods with clamps to fix glass apparatus. Each heating mantle is provided with an energy regulator and indicator lamp. Without glass parts.
CH11164 -
Distillation Apparatus
Water Still
Easy to use, safe to operate and designed for trouble free continues operation. Suitable for general laboratory use.
Features:
- All plumbing connections through thread connectors.
- Chrome-plated heating element fitted with a thermostat.
- Features a powder-coated metal stand for either wall or bench mounting.
- Water still features a high-quality borosilicate glass boiler and condenser with a PTFE stopcock for easy cleaning.
Technical Specifications:
- Power Rating: 3 kW
- Distilled Water Output: 4 L/Hr
- Input voltage: 220 V AC ± 10%, 50-60 Hz
Note: Recommended for use with a water softener to reduce limescale buildup.
CH14030 -
Distillation Apparatus
Water Still, Advanced
Water Stills are used in laboratory to provide an on-demand supply of distilled water. It removes the charged ions, the water still can filter out non-volatile organic compounds, microbes,
minerals and chemicals.Salient Features:
- This all-glass water still with silica-sheathed heaters and high-efficiency condenser ensures top distillate purity at an economical price.
- A reservoir level control feature automatically turns off the heater when the reservoir is full
preventing any overflow. - Two independent safety thermostats, mounted in the condenser and boiler prevents overheating in the event the water supply is interrupted.
- Easily and safely change the hoses without the risk of breaking any glassware using the screw thread connections.
- Wall mountable mild steel stand.
- Powder Coated exterior.
Distillate Quality:
- Output – 4 liters/hrs., single distilled
- pH – 5.0-6.5
- Conductivity, µScm-1- 1.0 – 2.0
- Resistivity, mOhm-cm-0.5 – 1.0
- Pyrogen content-Pyrogen Free
- Temperature – 25 – 35°C
- Water supply – 1 liters/min, 3 – 100psi, (20-700kPa)
- Electricity supply – 220 or 240V, 50-60Hz, single phase
- Power requirement – 3kW
- Dimensions (w x d x h) – 590 x 160 x 410mm
- Type (H2O Purification) – Water Still
- Feedwater Source – Pretreated Water, Tap/Potable
Note: Recommended for use with a water softener to reduce limescale buildup.
CH14030S -
Distillation Apparatus
Borosilicate Distillation Units
- Borosilicate glass distillation units continue to be the most effective, economic method of producing ultra-pure water for laboratory use. By contrast deioniser are only effective in removing those substances which are ionized. Further the resins contribute organic impurities to water and an ideal environment for bacterial growth in course of time.
- These distillation units are designed to produce a distillate of consistent purity. The unit consists of horizontal borosilicate boilers, condensers, and quartz heater. All parts are replaceable.
- The newly developed quartz heater is advantageous than chromium plated heaters. Chromium plated heaters react with acids during cleaning process. Quartz heaters do not react with acids or water during cleaning or at elevated temperature unlike metallic ones. Quartz heaters are easy to assemble and dismantle, unlike metallic ones which are bulky.
Features
- Compact, simple to use.
- Economical and ideal for colleges and general laboratory use.
- Borosilicate boiler, borosilicate condenser and quartz heater
- Powder coated stand for rust free operation.
- Provision for easy cleaning of boiler
- Input voltage: 220 V AC ± 10%, 50-60 Hz
Distillate Quality
- Conductivity: < 3.0 μS/cm
- Distilled Water Quality: Pyrogen Free
SAFETY CUT OFF DEVICE IS OPTIONAL
CH14031 -
Distillation Apparatus

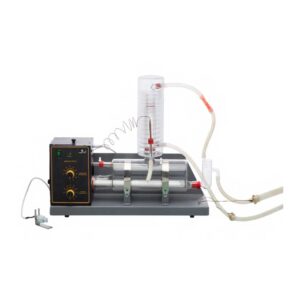

Mono Quartz Distillation Units
- Mono quartz distillers being very compact and the construction material being high purity quartz, it meets the standard of the analytical laboratory where purity of distilled water free from metallic ions and bacteria is criteria.
Construction
- The boiler is made of high purity quartz and the condenser is of borosilicate/quartz material. The built in heater provides minimum
loss of heat and production of distilled water in 2-3 minutes. The unit is mounted on a powder coated metal stand with electrical
connections and is easy to dismantle and assemble the unit. Fibre glass insulated wire and silicone rubber boot resists high
temperatures
Features
- Quartz boiler
- Condenser is available in borosilicate and quartz material.
- Distilled water output in 2-3 minutes.
- Pyrogen free, free of heavy metals.
- Efficient borosilicate/quartz coil condenser.
- Can be easily converted to bi-distillation apparatus.
- Powder coated stand for rust free operation.
- Safety cut off device is optional
Distillate Quality
- Conductivity:
3.0 μS/cm with Borosilicate Condenser
2.0 μS/cm with Quartz Condenser - Distillate Temperature: 30 to 45 °C
- Distilled Water Quality: Pyrogen Free
* Indicates 3 Phase connection
SAFETY CUT OFF DEVICE IS OPTIONAL
Safety cut off Device
CH14042 -
Distillation Apparatus
Double Quartz Distillation Units
- Quartz distillation units are manufactured from imported fused quartz tubes. The exceptionally high chemical purity and very low solubility of this material enables the production of very high performance system. The greatest possible attention has been taken for technical performance, simplicity of use and efficiency.
Construction
- The unit consist of a primary boiler with built-in heater enclosed in a quartz boiler. Upper boiler has a built-in quartz coil and condensing unit which is mounted on the boiler. Double wall condenser ensures separate condensation of vapor coming from the two boilers using a single cooling circuit.
Features
- Quartz boiler
- Quartz condenser
- Includes safety cut-off unit.
- Safety cut off device is included.
- Pyrogen free, free of heavy metals.
- Distilled water output in 2-3 minutes.
- Powder coated stand for rust free operation.
Distillate Quality
- Conductivity: < 1.0 µS/cm
- Distillate Temperature: 65 to 75°C
- Distilled Water Quality: Pyrogen Free
- Input voltage: 230 V AC ± 10%, 50-60 Hz
CH14045
