AC/DC Power Supply, Analog (SMPS)
SMPS based supply with independently variable and regulated AC and DC outputs, each set by its own multiturn control. Wide input range and high current rating suit physics and electrical laboratories.
FEATURES:
- Independent AC and DC outputs, both available simultaneously
- Multiturn potentiometer control for each output
- Separate overload indicators for AC and DC
- Compact, lightweight construction with minimal heat generation
- Colour-coded 4 mm safety sockets, yellow for AC, red and black for DC
- Illuminated ON/OFF rocker switch
- Impact-resistant molded housing with ventilation slots for heat dissipation
TECHNICAL SPECIFICATIONS:
- CE Marked
- Construction: SMPS based
- Regulation: Regulated on both AC and DC outputs
- AC Output: 1 – 12 V, 5 A, continuously variable
- DC Output: 1 – 12 V, 5 A, continuously variable
- AC Protection: Overload indicator blinks three times with two flashes each time
- DC Protection: Overload indicator with auto resettable function
- Input Voltage: 100 – 240 V AC, 50/60 Hz
Scope of Supply:
ADPS-SM -
Electrical Accessories
DC Regulated Power Supply (SMPS)
SMPS based supply delivering a stable, continuously variable DC output for laboratory, industrial and educational use. Switch-mode design gives high efficiency, compact construction and automatic overload protection. Available in four models.
FEATURES
- Compact, lightweight, high efficiency with minimal heat generation
- Single rotary knob for smooth voltage adjustment
- Stable and ripple-free output under varying load
- Overload and short-circuit protection with auto-reset function
- Colour-coded 4 mm safety sockets, red for positive and black for negative
- Illuminated ON/OFF rocker switch
- Impact-resistant molded housing with ventilation slots for heat dissipation
- Suitable for continuous duty operation
TECHNICAL SPECIFICATIONS
- CE Marked
- Regulation Type: Switch Mode Power Supply (SMPS)
- Output Voltage Range: 1 – 15 V DC or 1 – 30 V DC as per model
- Output Current: 2 A or 5 A as per model
- Display: 3-digit LED digital voltmeter
- Protection: Overload and short-circuit with auto-reset
- Output Terminals: 4 mm safety banana sockets
- Input Voltage: 100 – 240 V AC, 50/60 Hz
SCOPE OF SUPPLY
- Main unit
- Instruction Manual
- Power cord
DCPS-SM -
Electrical Accessories

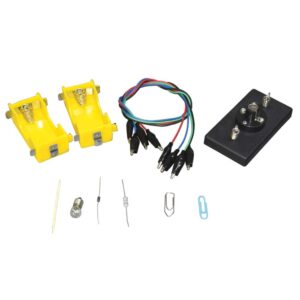

Conduction Kit
Students can make their own conduction tester through the kit and check themselves which substances are conductors and which are insulators. Included in the kit is 2D cell battery holders, 1 light bulb, 1 light bulb holder, 4 alligator connector cords, a sample pack, and Instruction manual.
PH50690 -
Electrical Accessories
Supertek Electricity Kit, Basic
This economical kit consists of various components, which help students explore many electrical and electronic concepts. Supplied with instruction manual.
Kit consists of Cell Holder (12), Bulb Holder, MES, Mounted on Base (20), Push Key (8), Two Way Switch (4), Universal Clip (4), Electrode Holder (4), Variable Resistance (4), Bulbs, MES (40), Connecting Lead, 4mm, 10cm, Red (12), Connecting Lead, 4mm, 10cm, Black (12), Connecting Lead, 4mm, 25cm, Red (4), Connecting Lead, 4mm, 25cm, Black (4), Crocodile Clips (8), Carbon Rod (12), Soft Iron Rod (8), Silicon Diode (4), Resistance, Fixed (4), Copper Foil Sheet, 150×150mm (1), Copper Wire, Bare, 20SWG (1 Reel), Copper Wire, Insulated, 50m (1 Reel), Eureka Wire, 34SWG (50gm), Steel Wool (1 Pack).
PH50800 -
Electrical Accessories
Supertek Electricity Kits, Primary
Primary Electricity Kits are designed to teach students the basic concepts for electricity. The various individual components are mounted on stable, robust plastic bases. Each component is with two 4mm diameter sockets.
Students can perform a variety of experiments by connecting these individual components in a circuit via 4mm stackable connecting leads. Kit A is for a group of 6 students, while Kit B contains additional components that can be issued by teacher as required. Only one Kit B is sufficient for a class of 30 students. Includes instruction manual.
PH50805 -
Electrical Accessories
Regulated DC Power Supply 3V-12V/3A (6 Outputs)
DC power supply unit provides regulated DC output voltage with excellent load and line regulation.
Description
- Compact and Light Weight Design
- Fire resistant ABS enclosure. Size 13.5 x 13 x 8.5 cm
- Reliable and long hours of use.
- With built-in overload protection at the output
- DC output voltage at 3V, 4.5V, 6V, 7.5V, 9V, 12V.
- Voltage is selectable with the help of rotary switch
- Max Current 3A
- Input Voltage 220V AC ± 10%, 50-60Hz
- CE certified
PH60102/3 -
Electrical Accessories
Regulated DC Power Supply 3V-12V/3A (10 Outputs)
A regulated DC power supply unit provides a continuously variable DC output voltage with excellent load and line regulation.
Description
- Compact and Light Weight Design
- Fire resistant ABS enclosure. Size 13.5 x 13 x 8.5 cm
- Reliable and long hours of use.
- With built-in overload protection at the output
- DC output voltage at 3V, 4V, 5V, 6V, 7V, 8V, 9V, 10V, 11V, 12V
- Voltage is selectable with the help of rotary switch
- Max Current 3A
- Input Voltage:220V AC ± 10%, 50-60Hz
- CE certified
PH60102/4 -
Electrical Accessories
Battery Eliminator
Battery eliminator is designed to give the most popular battery voltages. Substitutes a wide variety of batteries including AA, AAA, C, D, and 9V types. The voltage is conveniently selected by a rotary switch. The output is fully protected from short circuits and overloads. Battery Eliminator operates on 220V (±10 %), 50/60Hz input.
PH60104 -
-
Electrical Accessories
Cell Holder, Double
Supertek double cell holder is a high-quality easy-to-load and easy-to-remove cell holder for holding two standard D-size batteries. It is fitted on a sturdy plastic base. 4mm sockets are provided for the input signals separately with each cell holder. A double cell holder can be used as a single cell holder by using only one cell holder. It may also be used for the parallel or series combinations of two cells. Supplied without battery.
PH60119D -
Electrical Accessories
Cell Holder, Single
Supertek single cell holder is a high quality easy to load and easy to remove the standard D-size battery. It is fitted on a sturdy plastic base. 4mm sockets are provided for the output. Two or more cell holders can be used for parallel or series combinations. Supplied without battery.
PH60119S
