Scope of Supply:
- Main unit
- Instruction manual
- External digital controller box with stand
- Power cord
- PT100 temperature probe
- Support rod
- Holding rod
- Probe clamp
Heating & Tempering

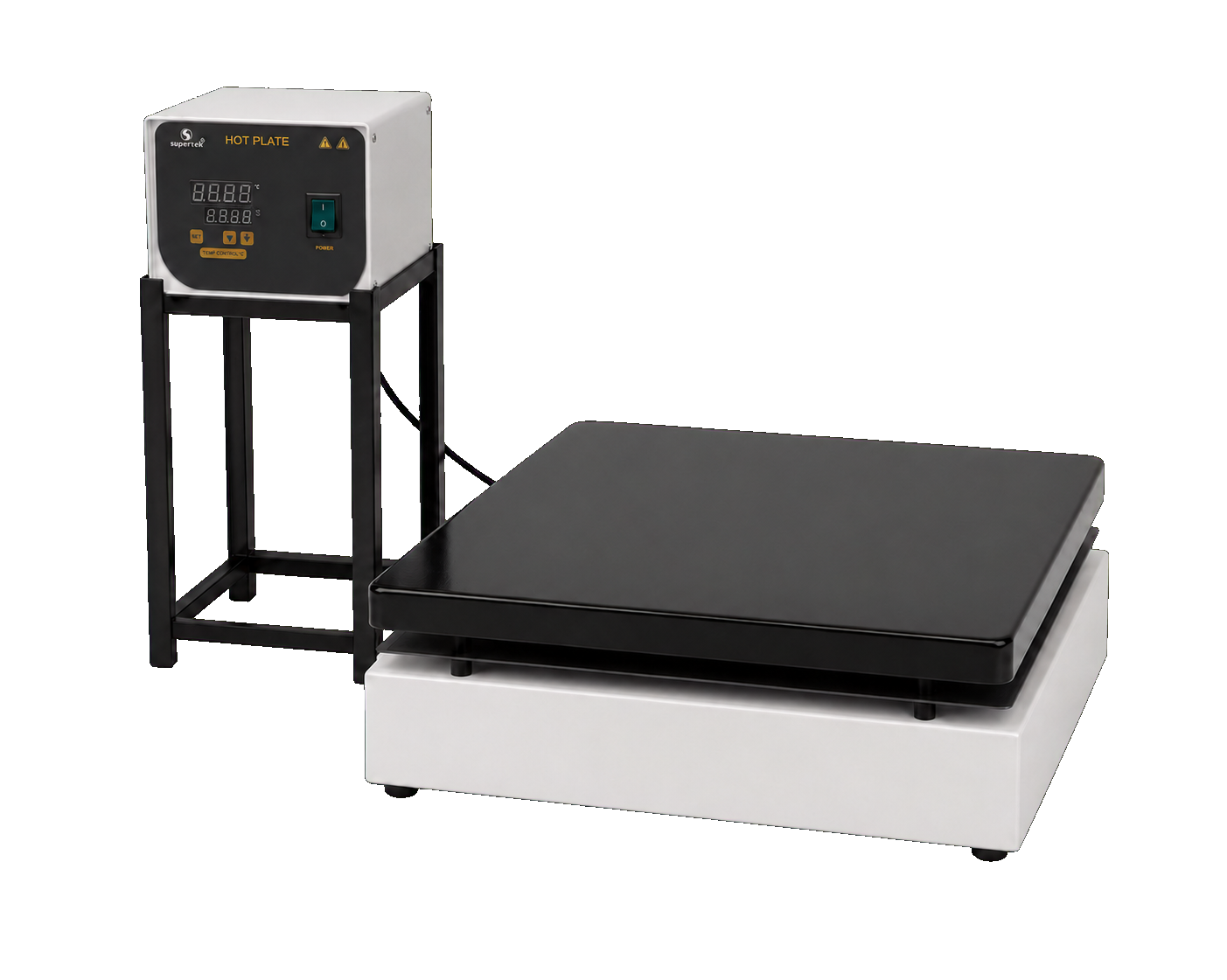

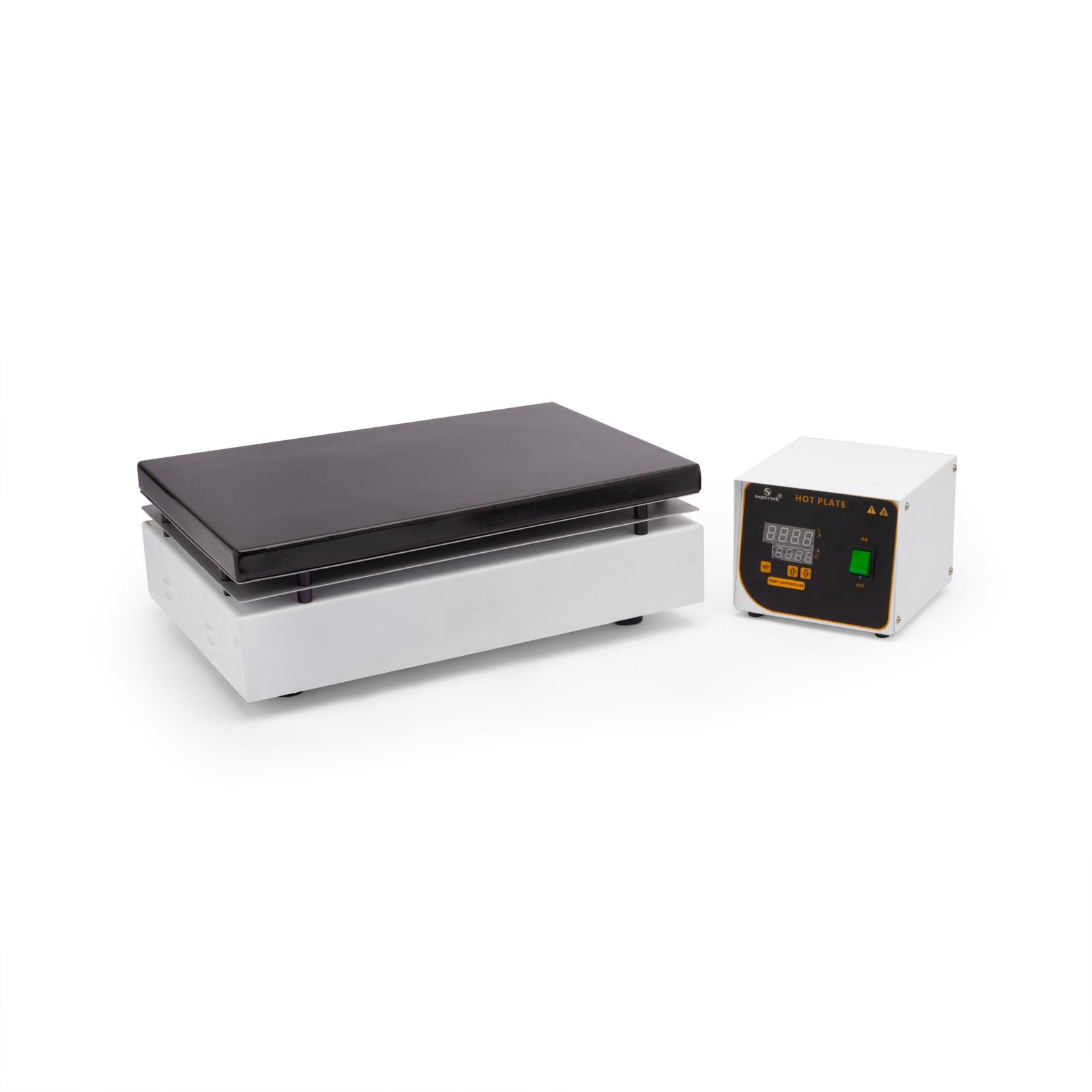

Laboratory Hot Plate, Ceramic-coated, Rectangular, Digital, with External Controller
Availability:
In Stock
Supertek’s laboratory hot plate with external digital controller is designed for controlled heating applications, especially where the hot plate is used inside fume hoods or areas exposed to fumes, vapours or corrosive environments. The heating plate can be placed inside the working area, while the separate controller box remains safely outside or away from direct chemical exposure. The controller is supplied in a separate enclosure with a stand, preventing it from being kept directly on the floor and improving ease of operation, visibility and safety. The hot plate
provides a durable and uniform heating platform suitable for sample preparation, chemical reactions, material testing and simultaneous heating of multiple solutions.
Features:
- Separate external digital controller for safer operation in fume hood applications
- Controller box supplied with stand to prevent floor placement and improve operating convenience
- Durable stainless-steel top provides excellent resistance to corrosion and chemical spills, ensuring longevity and easy cleaning
- Large heating surface with uniform heating
- Precise temperature control with PID controller
- LED display for showing actual and set temperature
- Measure and control the temperature of the solution directly
- Temperature probe PT100
- Includes support rods and clamps
- With non-slip rubber feet
- Suitable for heating multiple solutions simultaneously
- External controller design helps protect the control electronics from heat, fumes and accidental chemical exposure
Technical Specifications:
- Temperature range: Ambient +5°C to 350°C
- Temperature range of PT100: Ambient +5°C to 250°C
- Temperature accuracy: ±1°C, resolution 1°C
- Input voltage: 220 V AC ±10%, 50/60 Hz
- MOC Top Plate: Ceramic-coated stainless steel
- MOC Body: Powder-coated mild steel
- Control Type: External digital PID controller
- Controller Mounting: Separate controller box with stand
- Overload protection
- CE Marked
HPRTE-D
| Cat. No. | Plate Size | Power, W | Pack Size | Quantity | |
|---|---|---|---|---|---|
| HPRTE-D-1210C | 30 × 25 cm (12" × 10") | 1200 | 1 | ||
| HPRTE-D-1610C | 40 × 25 cm (16" × 10") | 1600 | 1 | ||
| HPRTE-D-1812C | 45 × 30 cm (18" × 12") | 1600 | 1 |
| Plate Size | 30 × 25 cm (12" × 10"), 40 × 25 cm (16" × 10"), 45 × 30 cm (18" × 12") |
|---|---|
| Power, W | 1200, 1600 |
| Pack Size | 1 |
