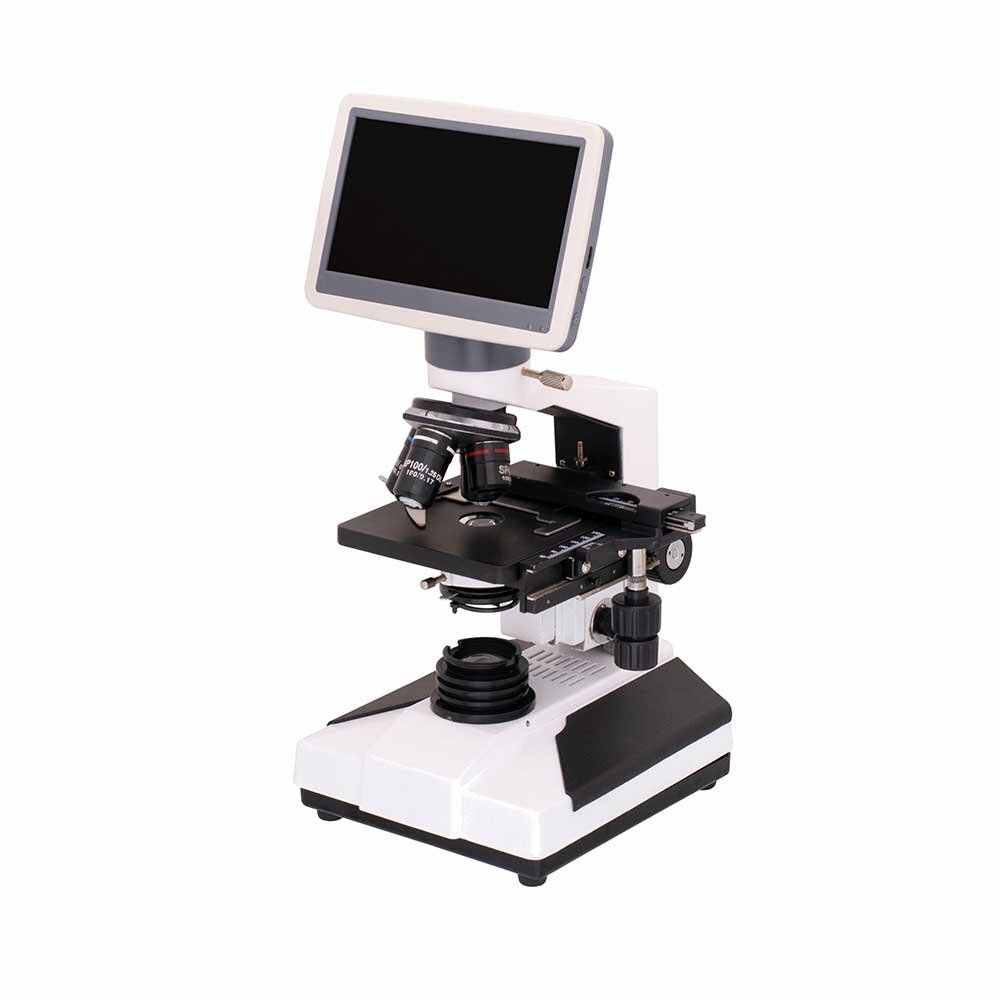

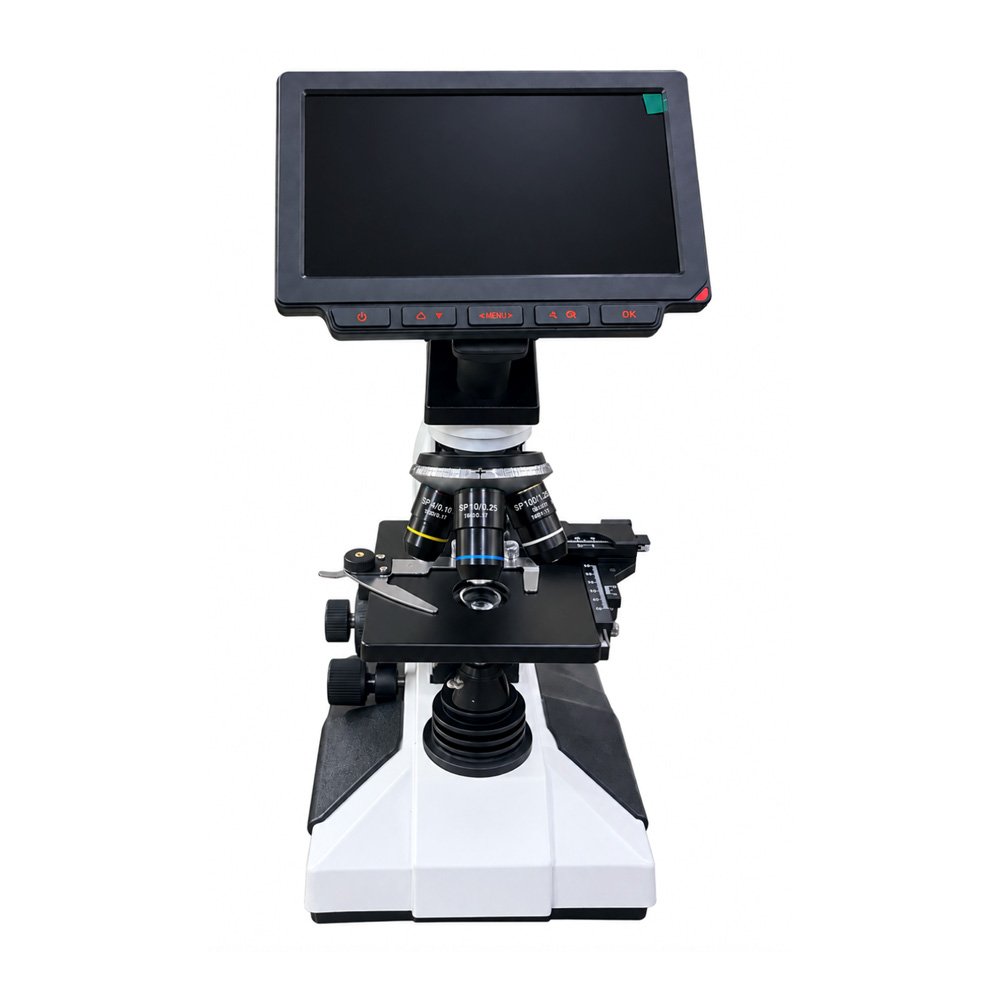

Digital Microscope

• Main Body: Sturdy, all-die-cast aluminium body with a balanced design for durability and stability,
• Viewing Head: 45° monocular observation head.
• Nosepiece: Outward quadruple nosepiece.
• Eye-Piece: Wide-field 10X/18 mm eyepiece with rubber protection; 15X, 20X, and 25X pairs available as optional accessories.
• Objectives: Semi-plan achromatic 4X, 10X, 40X, and 100X (oil) parfocal, clear, and anti-fungal objectives.
• Focusing: Separate coarse and fine focus knobs.
• Stage: 140 × 140 mm single-layer stage with coaxial controls for XY movement of specimen.
• Optical Design: Finite achromatic optical system.
• Condenser: Abbe NA 1.25 with iris diaphragm and swing-in, swing-out filter holder.
• Condenser Adjustment: Height adjustment via rack-and-pinion movement.
• Illumination (Light Source): 3W LED illumination with 20,000 hours rated life.
• Magnification Settings (Maximum via Optional Accessories): Four magnification settings – 40X, 100X, 400X, and 1000X for a broad range of observations.

*(Upgradable to 1500x, 2000x and 2500x)

• Packing & Accessories: Includes main body, monocular viewing head, digital screen, 4 objectives, 1 eyepiece, dust cover, cleaning cloth, immersion oil, power cable, and instruction manual. Packed in a Styrofoam box and cardboard box for safe transport.
