Digital Microscopes
-
Digital Microscopes

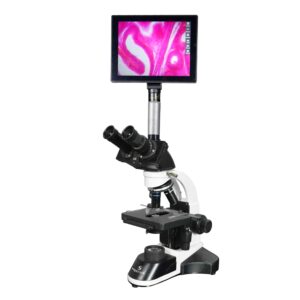

Digital Microscope
Technical Specifications:
- Main Body: Sturdy, all-die-cast aluminium body with a balanced design for durability and stability.
- Viewing Head: 45° 50:50 split trinocular observation head with sliding IP distance setting.
- Nosepiece: Inward quadruple nosepiece.
- Eye-Pieces: Wide-field 10X/18 mm pair of eyepieces with rubber protection; (15X, 20X, and 25X pairs optional).
- Objectives: Semi-plan achromatic 4X, 10X, 40X, and 100X (oil) parfocal, clear, and anti-fungal objectives.
- Focusing: Coaxial focusing system on both sides with tension adjustment knob.
- Stage: 140 × 160 mm dual-layer stage with coaxial controls for XY movement of specimen.
- Slide Holder: Dual Specimen Slides can be kept on the Stage
- Optical Design: Finite achromatic optical system.
- Condenser: Abbe NA 1.25 with iris diaphragm and swing-in/swing-out filter holder.
- Condenser Adjustment: Height Adjustment via Rack and Pinion Based movement.
- Illumination (Light Source): 3W LED illumination with 20,000Â life hours.
- Magnification Settings ( Maximum via optional Accessories): 1000x (Standard), 1500x, 2000x and 2500x
- Packing & Accessories: Includes main body, trinocular viewing head, Scope Pad screen, Scope Pad adapter, 4 objectives, 2 eyepieces, dust cover, cleaning cloth, immersion oil, power cable, and instruction manual. Packed in a Styrofoam box and cardboard box for safe transport.
BGE-CX-5i -
Digital Microscopes
Digital Monocular Microscope
Main Body Sturdy, all-die-cast aluminium body with a balanced design for durability and stability. Viewing Head 45° inclined monocular observation head. Nosepiece Outward quadruple nosepiece. Eye-Pieces Wide Field 10×/18 mm eyepiece with rubber protection; 15×, 20× and 25× pair optional. Objectives Semi Plan Achromatic 4×, 10×, 40× and 100× (oil), parfocal, clear and anti-fungal objectives. Focussing Separate coarse and fine focus knobs. Stage 140 × 140 mm single-layer stage with co-axial controls for X-Y movement of specimen. Optical Design Finite achromatic optical system. Condenser Abbe NA 1.25 with iris diaphragm and swing-in, swing-out filter holder. Condenser Adjustment Height adjustment via rack-and-pinion-based movement. Illumination (Light Source) 3 W LED illumination with 20,000 hours of operating life. Magnification Settings (Maximum via Optional Accessories) 1000× (Standard), 1500×, 2000× and 2500×. Packing & Accessories Includes main body, monocular viewing head, digital camera, 4 objectives, 1 eyepiece, dust cover, cleaning cloth, immersion oil, power cable and instruction manual. Packed in a Styrofoam box and cardboard box for safe transportation. BGE-IM -
Digital Microscopes
Digital Microscope
- Main Body: Sturdy, all-die-cast aluminium body with a balanced design for durability and stability,
- Viewing Head: 45° monocular observation head.
- Nosepiece: Outward quadruple nosepiece.
- Eye-Piece: Wide-field 10X/18 mm eyepiece with rubber protection; 15X, 20X, and 25X pairs available as optional accessories.
- Objectives: Semi-plan achromatic 4X, 10X, 40X, and 100X (oil) parfocal, clear, and anti-fungal objectives.
- Focusing: Separate coarse and fine focus knobs.
- Stage: 140 × 140 mm single-layer stage with coaxial controls for XY movement of specimen.
- Optical Design: Finite achromatic optical system.
- Condenser: Abbe NA 1.25 with iris diaphragm and swing-in, swing-out filter holder.
- Condenser Adjustment: Height adjustment via rack-and-pinion movement.
- Illumination (Light Source): 3W LED illumination with 20,000 hours rated life.
- Magnification Settings (Maximum via Optional Accessories): Four magnification settings – 40X, 100X, 400X, and 1000X for a broad range of observations.
*(Upgradable to 1500x, 2000x and 2500x)
- Packing & Accessories: Includes main body, monocular viewing head, digital screen, 4 objectives, 1 eyepiece, dust cover, cleaning cloth, immersion oil, power cable, and instruction manual. Packed in a Styrofoam box and cardboard box for safe transport.
BGE-IM-01
