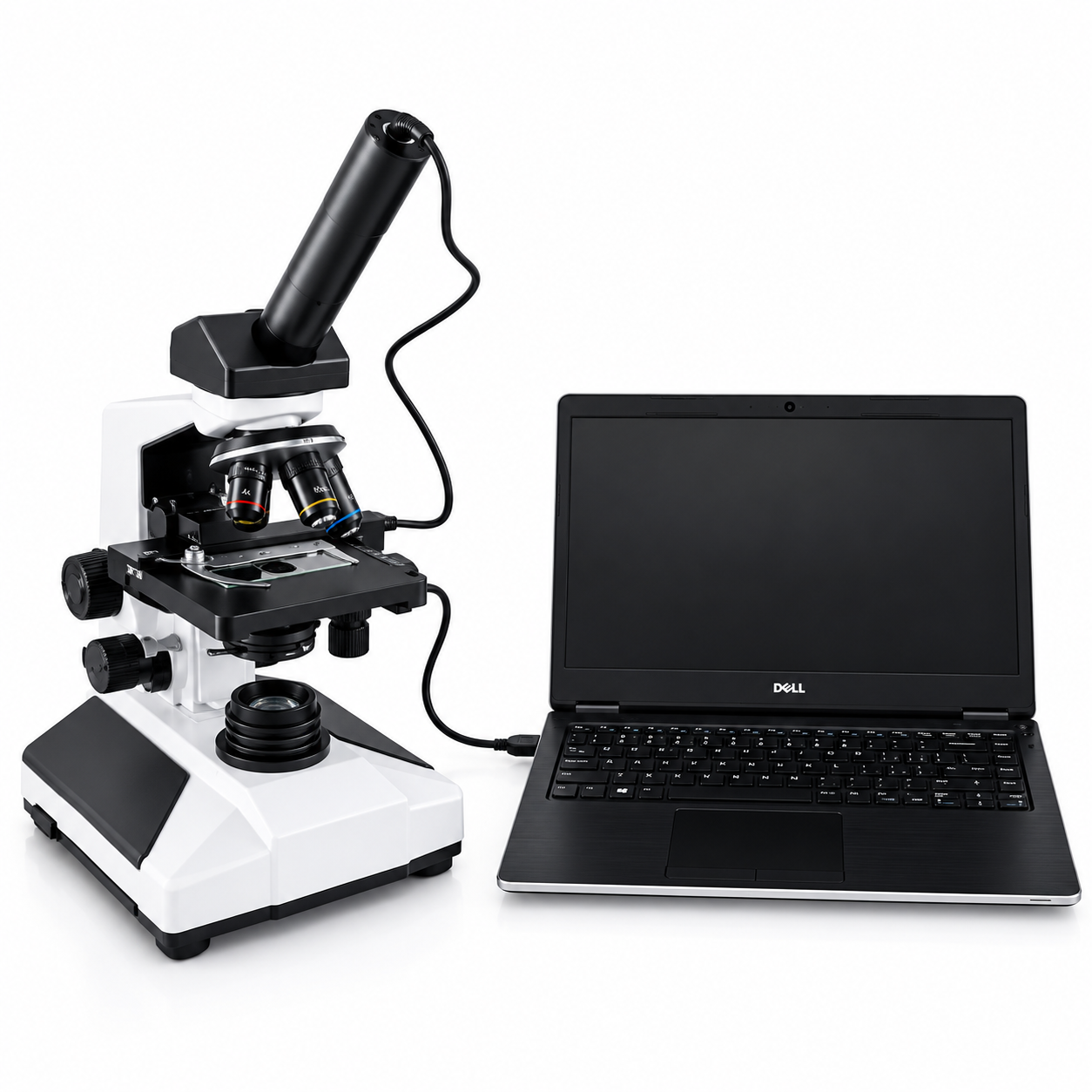

Digital Monocular Microscope

Digital Monocular Microscope

Availability:

In Stock
Main Body Sturdy, all-die-cast aluminium body with a balanced design for durability and stability.
Viewing Head 45° inclined monocular observation head.
Nosepiece Outward quadruple nosepiece.
Eye-Pieces Wide Field 10×/18 mm eyepiece with rubber protection; 15×, 20× and 25× pair optional.
Objectives Semi Plan Achromatic 4×, 10×, 40× and 100× (oil), parfocal, clear and anti-fungal objectives.
Focussing Separate coarse and fine focus knobs.
Stage 140 × 140 mm single-layer stage with co-axial controls for X-Y movement of specimen.
Optical Design Finite achromatic optical system.
Condenser Abbe NA 1.25 with iris diaphragm and swing-in, swing-out filter holder.
Condenser Adjustment Height adjustment via rack-and-pinion-based movement.
Illumination (Light Source) 3 W LED illumination with 20,000 hours of operating life.
Magnification Settings (Maximum via Optional Accessories) 1000× (Standard), 1500×, 2000× and 2500×.
Packing & Accessories Includes main body, monocular viewing head, digital camera, 4 objectives, 1 eyepiece, dust cover, cleaning cloth, immersion oil, power cable and instruction manual. Packed in a Styrofoam box and cardboard box for safe transportation.
BGE-IM

Cat. No.DescriptionQuantity
BGE-IM-033MP Microscope Camera
BGE-IM-055MP Microscope Camera



Camera Specifications 3MP 5MP
Sensor Optical Format 1/2.5″ 1/2.5″
Active Pixels 3MP 5MP
Pixel Size 2.2μm x 2.2μm 2.2μm x 2.2μm
FRAME RATE 640*480@30fps
800*600@30fps
1280*720@30fps
1280*960@25fps
1600*1200@25fps
1920*1080@25fps
2048*1536@25fps
2560*1440@25fps
2592*1944@25fps		 640*480@30fps
800*600@30fps
1280*720@30fps
1280*960@25fps
1600*1200@25fps
1920*1080@25fps
2048*1536@25fps
2560*1440@25fps
2592*1944@25fps
Microscope Mount 23.2mm 23.2mm
Power USB2.0 (To be Connected to Computer) USB2.0 (To be Connected to Computer)
BGE-IM Category:
Description

3MP Microscope Camera, 5MP Microscope Camera
