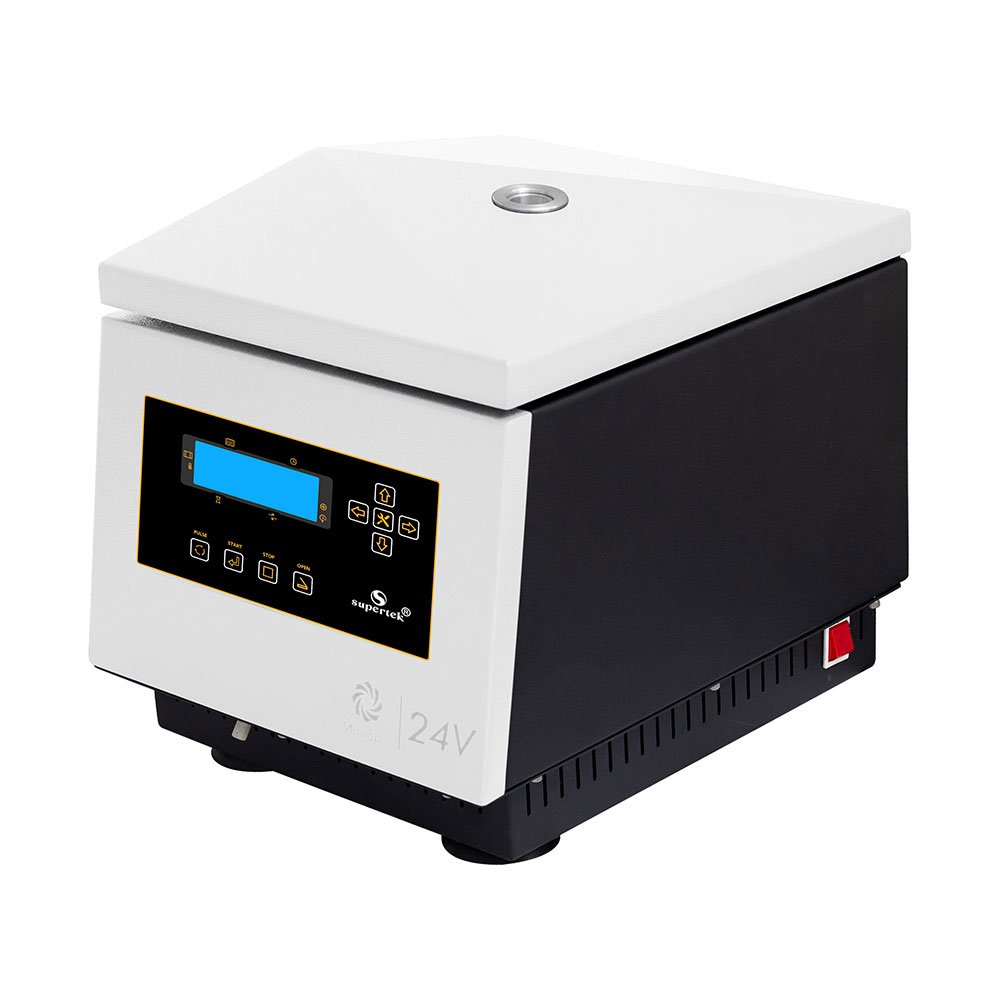

MiniSpin 32R/24V

Availability:

In Stock


The MiniSpin 32R (refrigerated) and MiniSpin 24V (ventilated) minicentrifuges are precision instruments crafted for high-speed performance in molecular biology, clinical diagnostics, and
research labs. Designed to accommodate microliter tubes and PCR kits, these compact systems combine robust engineering with intuitive digital control for superior separation results.

Features:

  •  High Capacity & Heavy-Duty Machines: Engineered to handle up to 80 mL with rotor configurations supporting 10 × 8 mL tubes
  • High RPM & RCF Output: These centrifuges support high rotational speeds and relative centrifugal force (RCF), e nabling effective separation of even the most challenging sample
    types.
  • Available with refrigeration option.
  • Refrigerated model uses eco-friendly, CFC-free R-134a refrigerant.
  • Automatic rotor recognition ensures accurate RCF calculation and safe operation.
  • Salient Features: Emergency Lid Opening, Rotor Cycle Counting, Solid Counter-Balanced Hinges, Imbalance Detection, Motor Overload Protection, Stainless Steel Chamber with Guard
    Ring, Error Detection System
  • Intuitive user interface with bright digital display
  • Features programmable timer up to 99 hours, 59 minutes, and 59 seconds
  • Store up to 99 user-defined protocols for fast setup and repeatability of routine applications.
  • Low operating noise levels.
  • Features Brushless Induction Motor
  • Multiple Acceleration & Braking Profiles Options
  • Supports multiple rotors (Not included)
  • CE Certified
MNS

Cat. No.CategoryDescriptionPack SizeQuantity
MNS-24VMiniSpinMiniSpin 24V1
MNS-32RMiniSpinMiniSpin 32R1
A30-20x5Rotors20 x 5 mL1
A24-10x8Rotors10 x 8 mL1
A26-24x1.5Rotors24 x 1.5 mL1
AL34-24x1.5Rotors24 x 1.5 mL1
A45-32x0.2Rotors32 x 0.2 mL PCR1




Specification MiniSpin 32R MiniSpin 24V
Cat. No. MNS-32R MNS-24V
Type Refrigerated Ventilated
Max. Capacity 80mL (10x8mL) 80mL (10x8mL)
Max. Speed 20,000 RPM 17,500 RPM
Max. RCF 32,198 × g 24,651 × g
Acceleration/Braking Time 15s / 15 s 15s / 15 s
Noise Level <58 dB A <58 dB A
Temperature Range -10 °C to +40 °C Ambient to +40 °C
Refrigerant R134a (CFC Free) Not Applicable
Dimensions (H × W × D) 585 × 511 × 337 mm 350 × 350 × 420 mm
Height with Lid Open 690 mm 690 mm
Weight (without rotor) 65 kg 40 kg
Power Consumption 750 W 500 W
Input Power 220-230 V AC, 50-60 Hz 220-230 V AC, 50-60 Hz
