Scope of Supply
- Main unit
- Instruction Manual
- Power cord
- Stirring bars as per selected model
Mixing

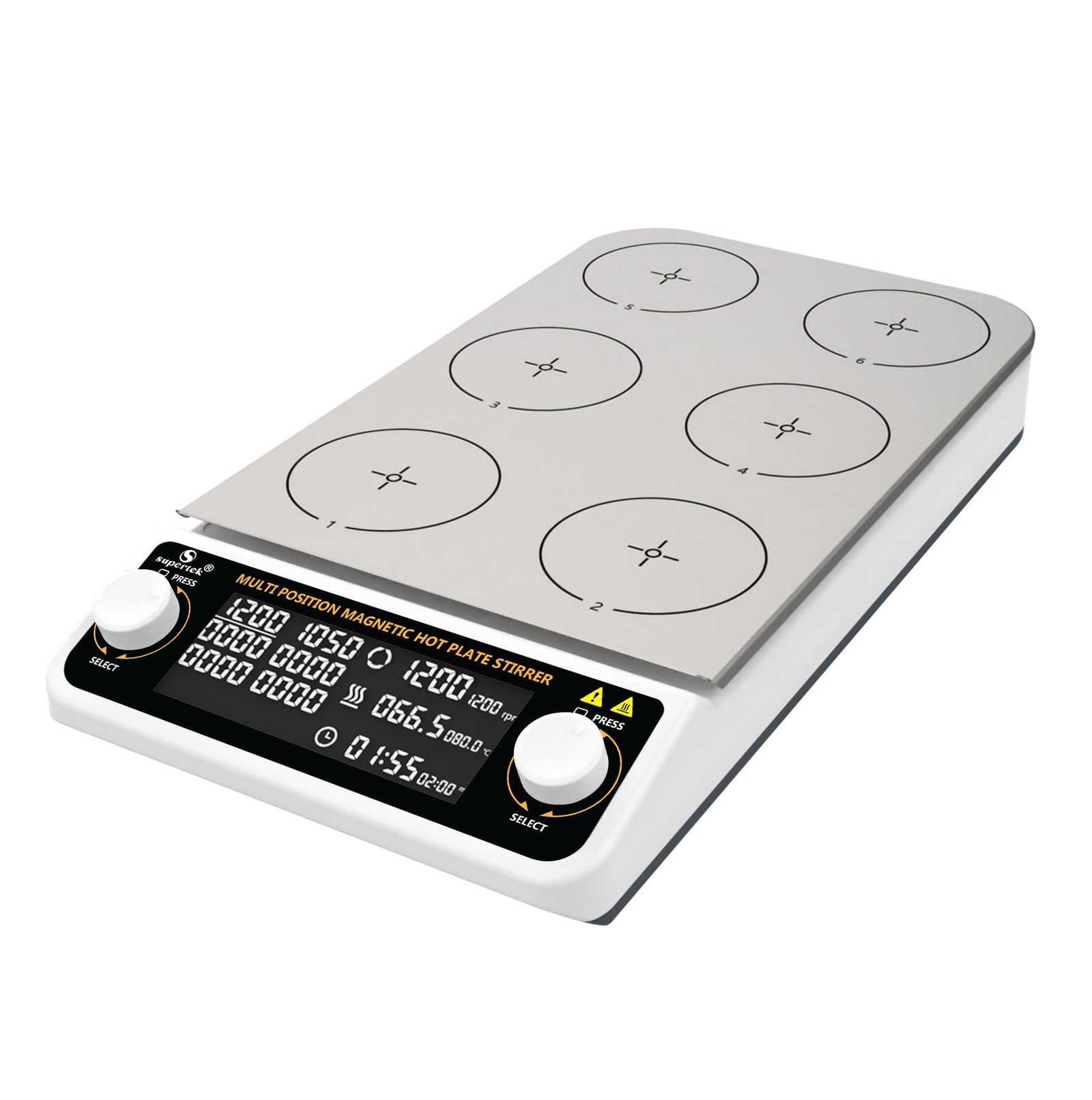

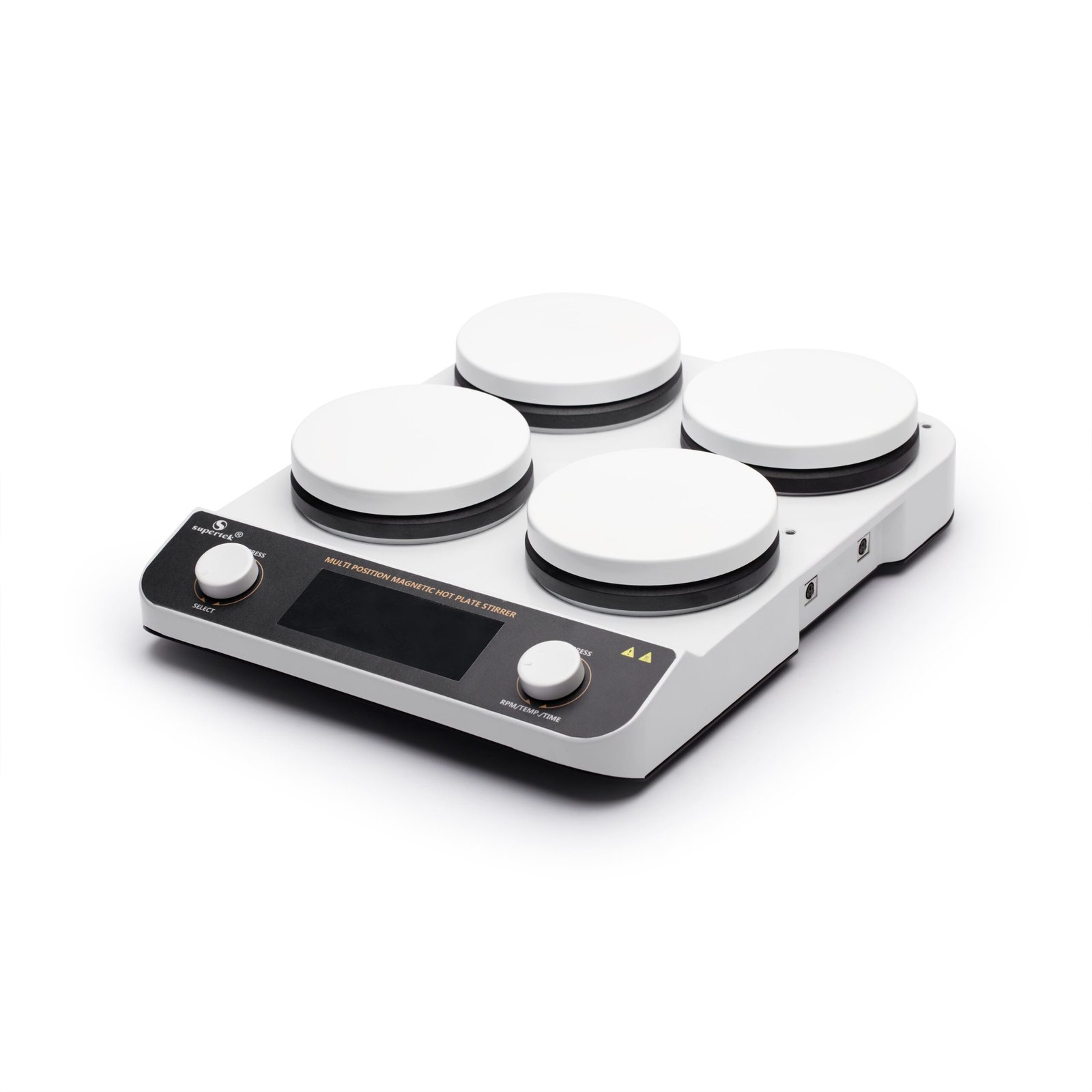

Multi-Position Magnetic Hotplate Stirrer, SS Top
Availability:
In Stock
The multiple hotplate magnetic stirrer allows simultaneous heating and stirring of several samples with uniform performance, ideal for parallel experiments in chemistry and biology labs.
Features:
- Stainless-steel 304 top
- Independent control of speed and time for each station; heating is uniform across all stations
- Brushless motor
- LCD display
- Built-in plate probe regulates heating for all positions
- Synchronous mode available for RPM and timer
- Maximum capacity per position: 500 ml
Technical Specifications:
- CE Marked
- Speed Range: 50 – 1200 rpm
- Mixing Direction: Clockwise
- Heating Temperature Range: Ambient +5 °C to 120 °C
- Timer Range: 1 min – 20h
- Stir Bar Size: 30 mm
- Safety: Over-temperature protection
- Power Supply: AC 220 V, 50/60 Hz
- IP Rating: IP21
MPMHS
| Cat. No. | Capacity | No. Of Positions | Total Capacity | Stirring Bar | Pack Size | Quantity | |
|---|---|---|---|---|---|---|---|
| MPMHS-D-4 | 500 mL per position | 4 | 2000 mL | 4 nos. stirring bars Ø8x30mm | 1 | ||
| MPMHS-D-6 | 500 mL per position | 6 | 3000 mL | 6 nos. stirring bars Ø8x30mm | 1 |
| Capacity | 500 mL per |
|---|---|
| No. Of Positions | 4, 6 |
| Total Capacity | 2000 mL, 3000 mL |
| Stirring Bar | 4 nos. stirring bars Ø8x30mm, 6 nos. stirring bars Ø8x30mm |
| Pack Size | 1 |
